Mô tơ khí nén KK5B Series

Có: 0 sản phẩm trong giỏ

Mô tơ khí nén KK5B Series
  • Mã SP: MTKNIR-KK5B
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 4004

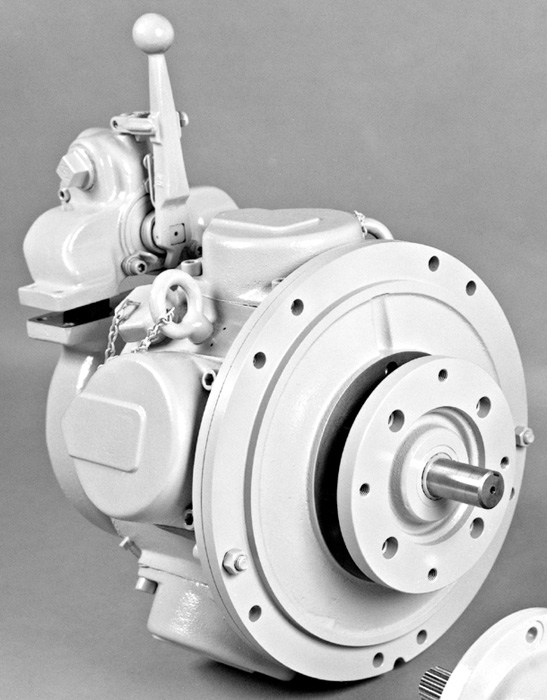

  • KK5B Series, Direct drive, Radial piston Air Motors. 29.00 hp to 30.00 hp (21.6 to 22.3 Kw). 900 rpm motors with adjustability through air controls. Piston motors are ideal for constantly varying loads such as winch and hoist applications.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
  • Up to 30 hp at 90 PSI air supply
  • NEMA, SAE and Foot mount models available
  • Manual and Remote control options available
  • Will not burn out: Air motors can be stalled or overloaded for long periods without damage.
  • Great for harsh environments: No heat build up or sparks make air motors ideal for use in flammable or explosive applications.
  • Instantly reversible: A four-way valve allows instant motor reversal (on reversible units) with the turn of a valve.
  • Cool Running: A running air motor expands air, allowing motors to operate in temperatures up to 150oF and some motors up to 300oF with special grease, lube and seals.
  • Compact and Portable: Get maximum horsepower in minimum size.
  • Variable speed: You may utilize a wide range of speeds by using a simple valve on your input air supply line.
  • Minimum maintenance: Our motors have a proven history of long, low maintenance life. All you need to provide is a clean, dry, lubricated air supply.
  • No shock starts: Air cushioned start-up cuts stress to your equipment.
  • Do not see what you need or want help with your selection: Call us with your requirements. We have hundreds of motors from which we can select. In many cases, we can provide “special” non-cataloged motors for unique applications. Call our technical support group in White House Tennessee at 800-866-5457.







Option Code Description Weight Part Number
lb. kg
Motor Options 546 29 Horsepower Motor 251 113 KK5B546
550 30 Horsepower Motor 251 113 KK5B550
Mounting Options A Flange Mount, STD with SAE C 2 & 4 Bolt Mount Standard
B Base Mount, Stationary Mounting 45 20 K5B - Foot
Output Shaft Options 0 *SAE C, STD with SAE C 14 Tooth Female Spline Input Standard
1 **NEMA 213TC and 215TC, Keyed Shaft 13⁄8" dia. 13 6 K5B - NEMA - 213
2 ***Keyed Shaft 15⁄8" dia. 24 11 K5B - Shaft - 1.625
Control Options A None Standard
B Manual Throttle, Control Mounted Directly on Motor 19 19 K5B - Manual
C Pilot Air Control, Required for Remote Controller Options 9 4 K5B - Pilot
Controller Options 0 None Standard
1 Pendant Control, STD 2 Button Pendant MLK-K269C
2 Panel Control, Required for Remote Stationery Mounted Control UWD - A686
Rotary Valve Options A Equal Powered Standard
B Biased Powered CCW POA
C Biased Powered CW POA
*Flange Gasket Required
**Single Bearing Mount
***Double Bearing Mount
