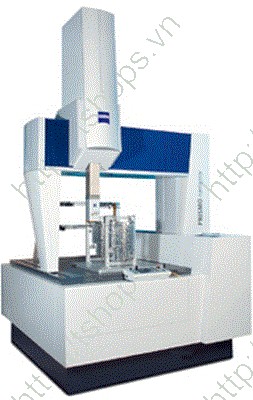

Máy đo 3 chiều PRISMO navigator CMM

Có: 0 sản phẩm trong giỏ

Máy đo 3 chiều PRISMO navigator CMM
  • Mã SP: CXAZE-PRIS
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 4464
  • Máy đo 3 chiều PRISMO navigator CMM
    PRISMO is number one in the world for high-speed scanning in production. Accuracy, speed and outstanding resistance to ambient conditions are the trademarks of this measuring machine. The VAST® universal probe for multi-point or single-point measuring is used on PRISMO navigator and adjusts to each measuring task and quickly determines size, form and position in a single measuring run.

    PRISMO is also included in the mass concept that incorporates the increased need for multifunctional measuring machines. PRISMO thus enables both contact and optical measurements.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Máy đo 3 chiều PRISMO navigator CMM
Get precise result as fast as possible with PRISMO navigator. All components support maximum precision during high-speed scanning.The CMM is also suitable for use on the shop floor. ISC control provides high reliability and optimal controller action. And, with VAST navigator, measuring times are reduced to an absolute minimum.
Measuring Range (in mm)
X
Y
Z
PRISMO 5
700
900
500
700
900
650
PRISMO 7
900
1200 - 2400
650
PRISMO 10
1200
1800 - 4200
1000
1600
2400 - 4200
1000
PRISMO 14
1600
2400 - 4200
1400

PRISMO navigator offers an extremely rigid, laterally driven light bridge, table covers as well as fully enclosed X axis and Y drive axis, glass ceramic scales, passive elastomer vibration damping, and S-CAA and D-CAA to compensate for static and dynamic bending effects.
