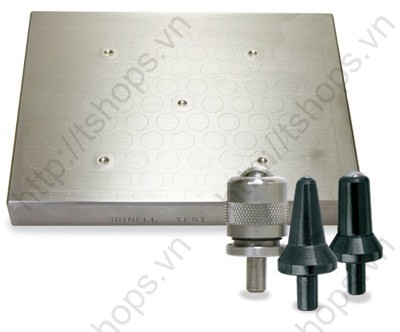

  • Test Blocks

    Wilson® Hardness Brinell test blocks are made from the highest quality material to ensure the most uniform and repeatable blocks available. The unique, closed-loop load cell instrument used for Brinell block calibration guarantees that the most stable and accurate test process is performed, promising the highest quality block on the market. Brinell test blocks are calibrated to meet American and international standards at the Wilson Hardness Calibration Laboratory. The Wilson Hardness lab is accredited to ISO/IEC 17025 by NVLAP®.

    A comprehensive selection of test blocks are available to meet the variety of hardness ranges and scales associated with Brinell testing.

    Indenters

    Wilson Hardness provides a full range of ASTM E-10 compliant indenters in 2.5 mm, 5 mm, and 10 mm ball sizes, available for all current and legacy Wilson Brinell testing instrumentation.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Phụ kiện máy đo độ cứng Brinell

Test Blocks (ASTM E10 / ISO 6506):

 Part Number  Description  Nominal Hardness Range (HBW)
WH-500HBW-3000 Steel test block, 500 HB  (3000kgf)

 450-525
WH-400HBW-3000 Steel test block, 400 HB  (3000kgf)

 389-449
WH-375HBW-3000 Steel test block, 375 HB  (3000kgf)

 364-388
WH-350HBW-3000 Steel test block, 350 HB  (3000kgf)

 339-363
WH-325HBW-3000 Steel test block, 325 HB  (3000kgf)

 314-338
WH-300HBW-3000 Steel test block, 300 HB  (3000kgf)

 289-313
WH-275HBW-3000 Steel test block, 275 HB  (3000kgf)

 264-288
WH-250HBW-3000 Steel test block, 250 HB  (3000kgf)

 239-263
WH-225HBW-3000 Steel test block, 225 HB  (3000kgf)

 214-238
WH-200HBW-3000 Steel test block, 200 HB  (3000kgf)

 170-213
WH-140HBW-3000 Alum. test block, 140 HB (3000kgf)

 115-169
WH-140HBW-1000 Alum. test block, 140 HB (1000kgf)

 115-169
WH-140HBW-500 Alum. test block, 140 HB  (500kgf)

 115-169
WH-SPEC-BRIN 5 mm / 10 mm ball indent**  *Per range for standard block
WH-SML-BRIN 1 mm / 2.5 mm ball indent**  *Per range for standard block

** Specifiy nominal hardness value, kg load, and ball size at time of order



Standard Brinell Indenters:

 Part Number  Description
900000485 10 mm Tungsten Carbide Ball with NVLAP certificate.  Set of two.
900007350 10 mm Ball Retainer, MJ, L, K, KDR, AP, & CLB3
900007352 10 mm Ball Seat J, MJ, L, K, KDR, & CLB3
900078004 Brinell 10 mm Carbide Ball Indenter Assembly (J, MJ, K, L, BP & CLB3 models)
900079016 AP Brinell 10 mm carbide ball indenter assembly, insert style, models prior to 2003
9110-136 AP Brinell 10 mm Carbide Ball Indenter Assembly, threaded seat for models yr 2003 and newer
900000595 5 mm Tungsten Carbide Ball with NVLAP certificate.  Set of two.
900016072 5 mm Ball Seat, J, MJ, L, K, KDR & CLB3
900016073 5 mm Ball Retainer, MJ, L, K, KDR, AP & CLB3
900076015 Brinell 5 mm Carbide Ball Indenter Assembly (J, MJ, K, L, BP & CLB3 models).
900079015 AP Brinell 5 mm carbide ball indenter assembly, insert style, models prior to 2003
9110-135 AP Brinell 5 mm Carbide Ball Indenter Assembly, threaded seat for models yr 2003 and newer
9110-131 2.5 mm Tungsten Carbide Ball with NVLAP certificate.  Set of two.
900016134 2.5 mm Ball Seat, J, MJ, L, K, & KDR
900016135 2.5 mm Ball Retainer, Model J
900076022 Brinell 2.5 mm Carbide Ball Indenter Assembly (J, MJ, K, L, BP & CLB3 models).


Universal Tester Indenters:

 Part Number  Description
9110-117 2.5 mm carbide ball indenter w/ NVLAP cert
9110-118 5 mm carbide ball indenter w/ NVLAP cert
9110-119 10 mm carbide ball indenter w/ NVLAP cert
9110-120 1.0 mm carbide ball indenter w/ DKD cert
9110-121 2.5 mm carbide ball indenter w/ DKD cert
9110-122 5 mm carbide ball indenter w/ DKD cert
9110-123 10 mm carbide ball indenter w/ DKD cert
9110-125 Indentor tungsten carbide ball 5mm
9110-126 Indentor tungsten carbide ball 5mm with tuck cap
9110-127 Indentor tungsten carbide ball 10mm
9110-128 Indentor tungsten carbide ball 10mm with tuck cap
9110-130 Tungsten carbide ball 1mm
9110-139 Indenter Rockwell diamond according to DIN ISO 6508, Part 2, direct and indirect verification
9110-140 Indenter Vickers
9110-141 Indentor Vickers, special holder
9110-150 Indentor Knoop
9110-190 Holder extension
download http://www.wilson-hardness.com/LinkClick.aspx?fileticket=f7RHPSSqBTY%3d&tabid=150&mid=513
