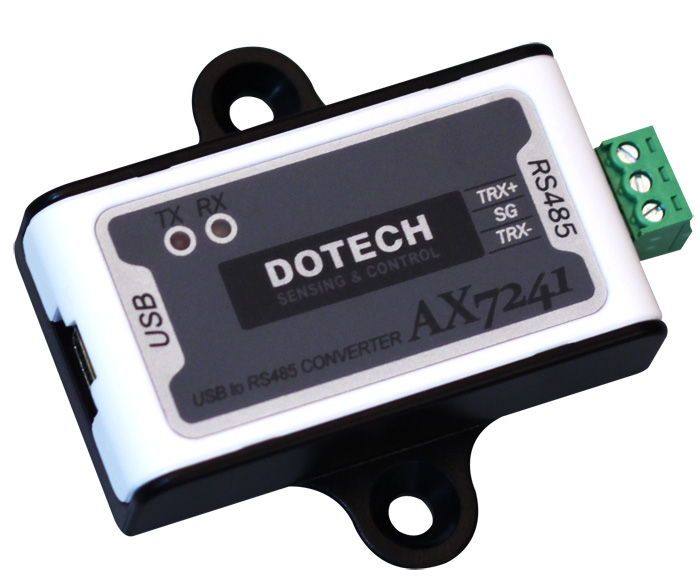

USB to RS485 Converter AX7241
  • Mã SP: AX7241
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 4934
  • - USB A to USB Mini A 5 Pin Conversion
    - Full-Duplex Virtual Com Conversion
    - USB-Powered(No Extra Power Supply)
    - Embedded Surge Protector
    - TX-Enable without Control Signal
    (No Need to Control with RTS, CTS, DTR, and DTE)
    - Stable Transmission(1200~1Mbps) through TXD, RXD, and GND
    - Current Status Check with Status LED(TXD and RXD)
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

USB A to USB Mini A 5 Pin Conversion

Full-Duplex Conversion of Virtual Com Technology

USB-Powered(No Extra Power Supply Needed)

Embedded Surge Protector

TX-Enable without Control Signal(No Need to Control with RTS, CTS, DTR, and DTE)

Stable Transmission(1200~1Mbps) with TXD, RXD, and GND Signals

Current Status Check with Status LED(TXD and RXD)



■ Technical Specifications

AX7241
Dimensions 65(W) x 66(H) x 18(D)
Power USB-Powered(No Extra Power Supply Needed)
Connection USB Mini A 5 Pin(1EA)
RS485 3-Pin Connector(1EA)
Communication USB and RS485
USB Cable 1EA(1.2m)(Included)
Driver Software CD(1EA)(Included)

※ Components

1. Converter(AX7241): 1EA

2. Driver Software CD: 1EA

3. USB Cable(1.2m): 1EA

4. 3-Pin Connector: 1EA

5. User's Manual: 1EA



■ Diagram


■ Dimensions
