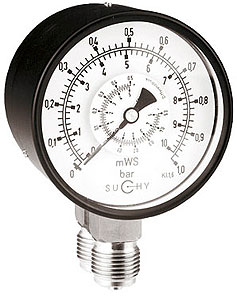

Differential pressure gauges with Bourdon tube with copper alloy - or stainless steel system
  • Mã SP:
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 6153
  • Nominal size ND 100 and 160
    Accuracy class 1,6

    Features
    permissible static pressure corresponds to full scale value
    - Direct readind of the differential pressure
    - High reliability on a longtherm basis
    - Two working bourdon tubes
    - Dual scale bar / mWs
    - Measuring system in compact design

    Applications
    - Industrial heaters
    - Filter monitoring,
    - Water supply systems
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Nominal size ND 100 and 160
Accuracy class 1,6

Features
permissible static pressure corresponds to full scale value
- Direct readind of the differential pressure
- High reliability on a longtherm basis
- Two working bourdon tubes
- Dual scale bar / mWs
- Measuring system in compact design

Applications
- Industrial heaters
- Filter monitoring,
- Water supply systems
Execution Measuring system copper alloy Measuring system stainless steel
Models and ND MDR-20 100 MDR-20 160 MRD-30 100 MRD-30 160
Ranges in bar 0...0,6, *)  1, 1,6,   2,5,  4, 6, 10, 16, 25, 40, 60, 100, 160, 250, 400, 600
*) for NS 160 the range 0 ... 0,6 cannot be supplied !
admissible statical pressure full scale value
Application Constant load:                                     up to full scale value
Alternating load:                                  0,9 x full scale value
Overload capacity - short time:         1,3 times max. full scale value, only for short times !
Case Steel, black -                                                                 Option CrNi steel , Option glycerine filling
Outer ring Steel, black -                                                                 steel black , Option CrNi steel
Window Single strength lens
Pointer Aluminium, black, for + pressure
Pointer dial, for - pressure and differential pressure
- on request two pointers instead of pointer dial
Movement Copper alloy CrNi steel
Measuring element Copper alloy CrNi steel
Connection SW 22, copper alloy CrNi steel
Connection thread 2 x bottom G 1/2 B
Protection IP 33 acc. to EN 60529 / IEC 529
Temperatures Medium: -20°C to 80°C, Environment -25°C bis 60°C
Weight 1,0 kg 1,6 kg 1.0 kg 1,6 kg
