Đo tốc độ động cơ PH-200LC

Có: 0 sản phẩm trong giỏ

Đo tốc độ động cơ PH-200LC
  • Mã SP:
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 6018


  • 1.0～25,000 rpm
    For rotational speed, surface speed, length, total number of revolutions measurement
    Memory function

  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Specifications

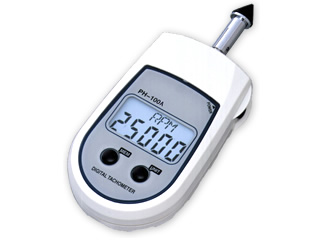

Model PH-100A
Measuring Range 1.0～25,000rpm
Surface Speed(by 6"wheel) 0.1～3809.8m/min
0.1～4,166.4yards/min
3～99,999inches/min
0.2～12,499feet/min
Length(by 6"wheel) 0.01～99,999 m
0.01～99,999 yards
1～99,999 inches
0.1～99,999 feet
Total Number Of Revolutions 0.1～99,999
Measuring Accuracy Revolutions 1.0～599.9rpm:±1rpm
600.0～25,000rpm:±0.006%and ±0.5digit
Surface,Speed,
Length		 ±0.4％ and ±1 digit
Display Size 5 digit 12 mm height LCD
Memory Function 14 readings are stored in memory and retained for 5 minutes(Last,Max,Min,Average and 10 selectable measurements)
Update time 1 second
Detection Optical coupleer, 20 pluses per rev.
Auto Power Off Function 5 minutes
Batteries 3 AA 1.5 Volts
Low Battery Indicator Flashing "LO BAT" display
Over Range Indicator Flashing "OVR" display
Operating Temperature 0～45℃
Construction ABS resin
Outside Dimensions 122.5L×64W×31.5Hmm
Weight 170g
Accessories Carrying case, Cone adapter, Funnel adapter, 6" wheel, Instruction manual, Certificate of calibration

Dimensions
