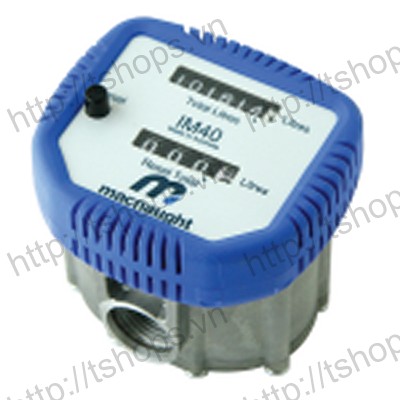

mechanical oil meters

Có: 0 sản phẩm trong giỏ

mechanical oil meters
  • Mã SP: AAKMN-MOM
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 11979
  • robust aluminium construction
    4-digit resettable batch totaliser (max 999.9 units)
    7-digit accumulative totaliser
    available in litres, quarts or US Gallons calibration
    protective shroud on meter
    fully serviceable
    10 year warranty and parts guarantee
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Specifications IM40 IM60
compatible fluids: lubricating oils up to SAE140, automatic transmission fluid and anti-freeze/anti-boil, diesel and kerosene lubricating oils up to SAE140, automatic transmission fluid and anti-freeze/anti-boil, diesel and kerosene
wetted components: acetal (suitable with oils), aluminium, nitrile (NBR), steel acetal (suitable with oils), aluminium, nitrile (NBR), steel
accuracy: ±1% of reading (lubricating oils) ±1% of reading (lubricating oils)
flow rate: 1-30 L/min (0.26-8 US gal/min) 1-50 L/min (0.26-13.21 US gal/min)
max. working pressure: 10 350 kPa (1 500 psi, 103.5 bar) 10 350 kPa (1 500 psi, 103.5 bar)
inlet thread: ½” BSPT or NPT (F) ¾”  BSPT or NPT (F)
outlet thread: ½” BSPT or NPT (F) ¾” BSPT or NPT (F)
operating temperature: -10ºC (14ºF) to 55ºC (131ºF) -10ºC (14ºF) to 55ºC (131ºF)
weight (approx): 470 g (1.04 lbs) 950g (2.09lbs)
