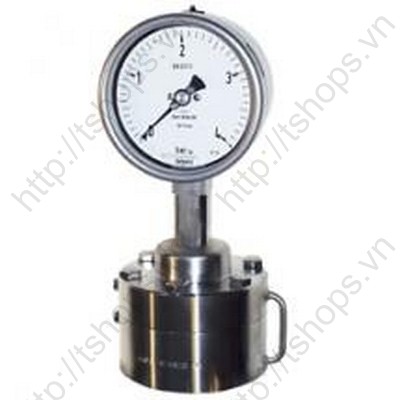

Đồng Hồ Đo Áp Suất
  • Mã SP: BCALB-DGC
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 5722
  • For high pressure ranges with particular requirements for overload protection. Universally suitable for measuring liquids and gases, and depending on design, for measuring aggressive media. Special models upon request. For use outdoors and in aggressive environments. Can be supplied in shock and shake proof design with liquid filling.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Đồng Hồ Đo Áp Suất

Features
  • Case with blow-out device
  • Case and measuring flange of stainless steel, diaphragm of Duratherm
  • High overload protection up to 5 times (option: up to 20 times)
  • Nominal ranges 0…40 mbar up to 0…25 bar (diffential pressure)
  • Accuracy class 1.6 per DIN EN 837-3
Options
  • Safety case with blow-out back and
    solid baffle wall
  • Case with liquid filling and degree of
    protection IP 66
  • 3-way valve block
  • Inspection certificates
    - material certificate as per DIN EN 10204
    - calibration certificate as per DIN EN 10204
  • Type series
    BD2200;BD2220;BD2300;BD2320
    BD2500;BD2540;BD2600;BD2640
Application area

● Chemical and Petrochemical industry
● Shipping
● Machinery construction
