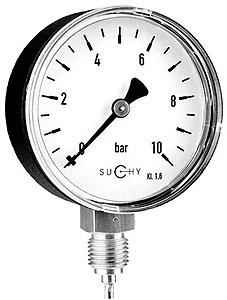

Pressure gauges with 10% Bourdon tube standard version

Có: 0 sản phẩm trong giỏ

Pressure gauges with 10% Bourdon tube standard version
  • Mã SP:
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng: Còn hàng
  • Khuyến mãi:
    Khuyến mại từ Ttech
  • Lượt xem: 5991
  • Nominal size ND 40, 50 and 63
    Accuracy class 1,6 and 2,5
    according to DIN EN 837-1

    Features
    - Plastic case ABS
    - Copper alloy measuring system

    Applications - Air-conditioning
    - Pneumatic systems
    - Heating systems
    - Hydraulic systems
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Nominal size ND 40, 50 and 63
Accuracy class 1,6 and 2,5
according to DIN EN 837-1

Features
- Plastic case ABS
- Copper alloy measuring system

Applications - Air-conditioning
- Pneumatic systems
- Heating systems
- Hydraulic systems
Model and ND MR-10 40 MR-14 40 MR-10 50 MR-14 50 MR-10 63 MR-14 63
Connection bottom back, bottom bottom back, centric bottom back, centric
Accuracy class 2,5 1,6
Ranges
in bar		 0...0,6, *) 1, 1,6, 2,5, 4, 6, 10, 16, 25, 40, 60, 100, 160, 250, 400
-1 / 0, -1 / +0,6, -1 / +1,5, -1 / +3, -1 / +5, -1 / +9, -1 / +15,
*) für ND 40 Range 0...0,6 not possible
VApplication Constant load: 3/4 end of scale
Alternating load: 2/3 x end of scale
Short time: end of scale value
Case Plastic, black (ABS) Plastic, black (ABS))
or steel, black
Window Plexiglass clipped on
Dial Aluminium white, scale black
Pointer Aluminium, black
Movement CuZn alloy
Measuring element Cu alloy
Connection CuZn alloy
Connection thread G 1/8 B o. Z. oder G 1/4 B G 1/4 B G 1/4 B
Temperatures Media: -20°C to 60°C, environment: -40°C to 60°C
Weight 0,07 kg 0,07 kg 0,08 kg 0,07 kg 0,15 kg 0,15 kg
Các bạn download tài liệu hướng dẫn sử dụng ở đường link bên dưới: http://asp1.hurasoft.com/uploads/Document/promotion/HANG TRONG KHO 2.pdf
