CMCP1100 Low Cost Industrial Accelerometer with Integral Cable

Có: 0 sản phẩm trong giỏ

CMCP1100 Low Cost Industrial Accelerometer with Integral Cable
  • Mã SP: CMCP1100
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 4396

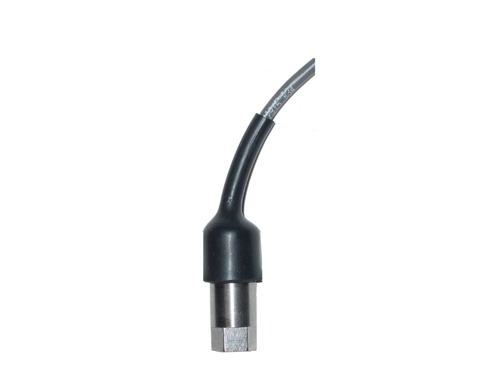

  • The CMCP1100 Low-Cost Industrial Accelerometer is manufactured with an integral cable and is fully enclosed in a potted and waterproof stainless steel case.

    Always in Stock
    100 mv/g Sensitivity
    5, 10 and 20 Meter Lengths in Stock
    1/4" x 28 UNF Mounting Stud
    Small Size 1/2" Dia.x 1.05"
    0.32 Hz to 10 KHz Frequency Range
    Optional BNC Connector

  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Specifications:


Dynamic Performance English SI
Sensitivity (ñ10%) 100 mV/g 10.2 mV/(ms-2)
Measurement Range ±50 g ±500 ms-2
Frequency Range: (ñ3 dB) 0.32 to 10 kHz 0.32 to 10 kHz
Mounted Resonant Frequency >25 kHz >25 kHz
Amplitude Linearity ≤1% ≤1%
Transverse Sensitivity ≤5% ≤5%

Environmental English SI
Shock Limit ±7,000 g pk ±70000 ms-2 pk
Temperature Range -65 to +185 °F -54 to 85 °C


Electrical English SI
Settling Time 2.5 sec 2.5 sec
Excitation Voltage 18 to 28 VDC 18 to 28 VDC
Excitation Constant Current 2 to 20 mA 2 to 20 mA
Output Impedance <100 ohms <100 ohms
Output Bias Voltage 8 to 12 VDC 8 to 12 VDC
Electrical Case Isolation >108 ohms >108 ohms
Electrical Protection RFI/ESD RFI/ESD
Integral Cable 22 AWG , 221ø F 22 AWG, 105ø C

Spectral Noise
(1 Hz) 85 µg / √Hz 850 (µm/s-2) / √Hz
(10 Hz) 10 µg / √Hz 100 (µm/s-2) / √Hz
(100 Hz) 2.7 µg / √Hz 27 (µm/s-2) / √Hz
(1 kHz) 1 µg / √Hz 10 (µm/s-2) / √Hz

Mechanical English SI
Size 0.36" x 3.76" 9.14 x 9.55 mm
Weight (including 5 M cable) 2.5 oz 70.7 g
Mounting Thread 1/4-28 UNF-2B 1/4-28 UNF-2B
Mounting Torque 2 to 5 ft-lb 2.7 to 6.8 N-m
Sensing Element Ceramic/Shear Ceramic/Shear
Case Material Stainless Steel Stainless Steel
Sealing Potted Potted
Wrench Flats 7/16 7/16
