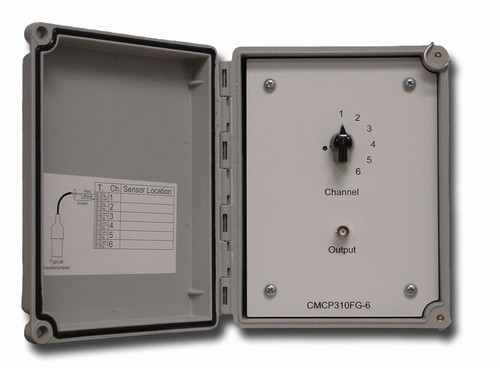

The CMCP310 Series Switchable BNC Junction Boxes are designed for terminating and switching the outputs of up to 48 accelerometers. They are installed in a location as close to the machine as practical to reduce wiring cost and yet provide convenient safe access to the vibration signal by an operator with a portable data collector or analyzer.

The CMCP310 Series Junction Boxes are available in three (3) versions, "FG" Nema 4x Fiberglass, "PS" Nema 4 Powder Coated Steel and "SS" Nema 4x Stainless Steel. Both internal and external switch/BNC models are available. Internal models are provided with quick access latches and external models with screw covers and protective caps for the BNC fitting. In harsh environments internal models should be specified. Black and white bezel tagging is provided for channel and switch identification.

CMCP310FG Fiberglass Switchable BNC Junction Boxes:
The CMCP310FG Fiberglass NEMA 4X enclosure made of molded fiberglass polyester and is easily punched or drilled. It has outstanding chemical and temperature resistance and physical properties. A seamless foam in-place gasket assures a watertight and dust tight seal. Screw covers are secured with captivated Monel cover screws.

CMCP310PS Powder Coated Switchable BNC Junction Box:
The CMCP310PS Powder Coated NEMA 4 enclosure is constructed of 14 gauge mild steel and is ANSI 61 gray polyester powder coated on the all surfaces.

CMCP310SS Stainless Steel Switchable BNC Junction Box:
The NEMA 4X enclosure is constructed from 14 gauge 304 Stainless Steel.
