SKF TMMP Series - Standard Bearing Pullers
  • Mã SP: SKF TMMP SERIES
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 4622
  • One of the easiest and most effective ways to dismount small to medium size bearings is to use a mechanical puller. Using an SKF puller helps to ensure that no damage is caused to the bearing or to the bearing seating during dismounting. SKF standard jaw pullers offer you easy and safe jaw puller operation.

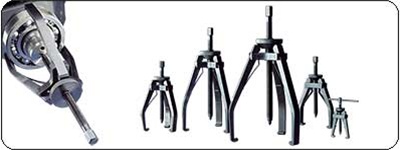

    Range of five different jaw pullers with two or three arms
    Maximum nominal span from 65 to 300 mm (2.6 to 11.8 in)
    Cone system for automatic centering and secure positioning of arms
    Strong springs to keep arms apart for easy operation
    Hardened, high quality carbon steel
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Technical data:

TMMP 2x65
  • No. of arms: 2
  • Width of grip: 65mm / 2.6 inches
  • Effective length of arms: 60mm / 2.4 inches
  • Maximum withdrawal force: 6.0 kN / 1,340 lbf
  • Weight: 0.4 kg / 0.9 lb
 TMMP 2x170
  • No. of arms:  2
  • Width of grip: 170mm / 6.7 inches
  • Effective length of arms: 135mm / 5.3 inches
  • Maximum withdrawal force: 18.0 kN / 4,030 lbf
  • Weight: 1.9 kg / 4.2 lb
TMMP 3x185
  • No. of arms: 3
  • Width of grip: 185mm / 7.3 inches
  • Effective length of arms: 135mm / 5.3 inches
  • Maximum withdrawal force: 24.0 kN / 5,380 lbf
  • Weight: 2.5 kg / 5.5 lb
 TMMP 3x230
  • No. of arms: 3
  • Width of grip: 230mm / 9.1 inches
  • Effective length of arms: 210mm / 8.3 inches
  • Maximum withdrawal force: 34.0 kN / 7,610 lbf
  • Weight: 5.5 kg / 12 lb
TMMP 3x300
  • No. of arms: 3
  • Width of grip: 300mm / 11.8 inches
  • Effective length of arms: 240mm / 9.4 inches
  • Maximum withdrawal force: 50.0 kN / 11,200 lbf
  • Weight: 9.0 kg / 20 lb


Part ordering details:
for individual parts of puller
nnn represents specific puller part #
-x is the ordering extension for that particular part
TMMP nnn-1  (1 on diagram)
  • Arm - length
    • TMMP 6 - 120 mm / 4.7 in
    • TMMP 10 - 207 mm / 8.2 in
    • TMMP 15 - 260 mm / 10.2 in
TMMP nnn-2  (2 on diagram)
  • Arm - length
    • TMMP 6 - 220 mm / 8.6 in
    • TMMP 10 - 350 mm / 13.8 in
    • TMMP 15 - 340 mm / 13.4 in

TMMP nnn-3  (3 on diagram)
  • Arm - length
    • TMMP 6 - 370 mm / 14.5 in
    • TMMP 10 - 460 mm / 18.1 in
    • TMMP 15 - 435 mm / 17.1 in
TMMP nnn-4  (4 on diagram)
  • Arm - length
    • TMMP 6 - 470 mm / 18.5 in
    • TMMP 10 - 710 mm / 27.9 inches
    • TMMP 15 - 685 mm / 27.0 in
TMMP nnn-6  (5 on diagram)
  • Spindle with centre nib
TMMP nnn-1K  (6 on diagram)
  • Stand, boss, complete set of pins, bolts and link arms (per arm)
