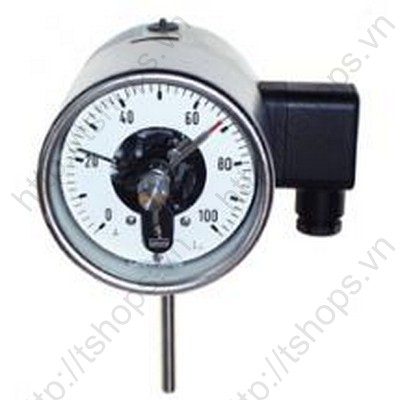

Gas expansion thermometer FU2
  • Mã SP: BBFLB-GETFU2
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 8110
  • These thermometers are suitable for use outdoors and in aggressive environments. The devices can also be supplied with additional liquid damping for use in extreme conditions. Further information on mounting see operating instructions BTA-066. See data sheets T5-… for suitable thermowells per DIN 43772.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Features
  • Case, measuring system and wetted parts of stainless steel
  • Case DN 100/160, degree of protection IP 66
  • Stem diameter 6, 8 and ≥ 10 mm
  • Short immersion lengths of the stem may be used
  • Accuracy class 1 or 2 per DIN 16196, depending on range
  • Micro adjustment pointer for indication correction
  • Electrical contact device per DIN 16196:
    - slow acting contact
    - magnetic snap contact
    - inductive contact devices
Options
  • Case with liquid filling
  • Explosion protection
  • Classification per SIL 2
  • Material certificate per DIN EN 10204
  • Connection to Zone 0 with thermowells upon request
  • Type series

    FU2310;FU2311;FU3310;FU3311;
    FU2510;FU2511;FU3510;FU3511

Application area

● Chemical and petrochemical industry
● Machinery construction
● Shipping
