  • Get more out of your belt-driven equipment with proper alignment using Pulley Partner EC laser alignment system!

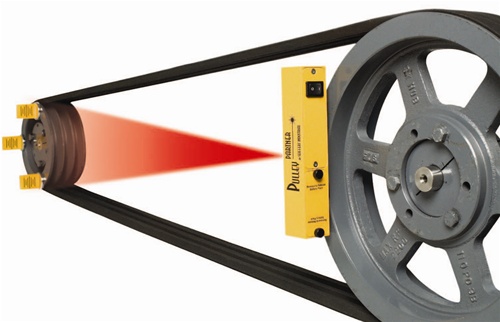

    The Pulley Partner EC® can measure spans up to 8 feet or better with ANY size pulley, large or small. A laser line is projected from the Pulley Partner EC® transmitter to 3 magnetic targets mounted to the opposite pulley. This laser reference line on the targets indicates the offset and vertical angle misalignment right away. This will indicate to the operator all major aspects of the pulley misalignment.


    This system is fully upgradeable to the much more accurate reflector system at any time. Simply purchase the model KX-2500UPGRADE, which consists of adding the KX-2500R reflector. This addition to your system will increase your accuracy by 20 times greater versus the target system. It's your choice.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Specifications
  • Model KX-2500T Laser Transmitter
    • Operating distance: 8 ft. or better
    • Accuracy: 1/16" at 6 ft.
    • Laser type: 635nm visible laser diode
    • Laser power: <1mW, class 2
    • Laser line length: 32" at 8 ft.
    • Controls: Laser ON/OFF rocker switch
    • Operating time: 25 hours continuous at 72° F
    • Battery type: 2 AAA alkaline batteries
    • Operating temp: 15° to 110° F
    • Storage temp: -4° to 140° F
    • Mounting: Magnetic
    • Weight: 10.1 oz. Dimensions: 1.25" (W) x 1.25" (D) x 6.5" (H)
    • Housing: Aluminum, powder coat finish
