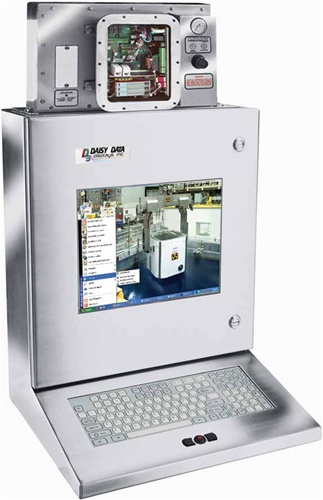

  • The 4510KP Intrinsically Safe Computer Series is a ruggedized purge system for use in many types hazardous areas.

    Certification: FM Approved, Class I Div 1, Groups A-G

    28-Key Keypad
    NEMA 4X enclosure with complete purge kit options
    A great many options are available to customize the unit for any application.

  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Specifications
MATERIAL
Enclosure
304 Stainless Steel
#4 Finish
Viewport Polycarbonate Standard
Design
NEMA 4X Y-Purge
electrical equipment
Interlocks
Low pressure alarm
contacts
PHYSICAL
15.0"
30.00" Height (H)
22.50" (H1)
3.00" (H2)
19.00" Width (W1)
12.25" (W2)
3.38" (W3)
7.50" Depth (D)
9.16" View Height (VH)
12.16" View Width (VW)
18.1" & 20.1"
35.00" Height (H1)
24.75" (H2)
3.00" (H3)
25." Width (W1)
12.25" (W2)
7.50" Depth (D)
18.1" Only
11.50" View Height (VH)
14.33" View Width (VW)
20.1" Only
12.58" View Height (VH)
15.72" View Width (VW)
Operating Temperature 32 - 104° F
Storage Temperature -4° - 140° F
Relative Humidity 5 - 95% Non-Condensing
FLAT PANEL SPECIFICATIONS
Maximum Resolution
1024x768 (15.0")
1280x1024 (18.1" & 20.1")
Dot Pitch
0.297mm (15.0")
0.281mm (18.1" & 20.1")
Color Depth 24 bit (15.0" thru 20.1")
Viewing Angle (Typical H-V) 85° - 85° (15.0" thru 20.1")
Brightness (Standard)
350 nits (15.0")
200 nits (18.1" & 20.1")
COMPUTER SPECIFICATIONS
Motherboard
Micro ATX Motherboard, Integrated Graphics,
2 PCI Slots, 2 PCI Express Ports, Gigabit Ethernet
Storage (Standard)
80 GB SATA Hard Drive,
16X DVD-ROM Drive
CPU (Standard)
Contact us for information on the latest CPU, memory, and hard drive options!
 Pentium® 4 Mobile
CONNECTIONS
From Motherboard
1 Serial, 1 Parallel, 4 USB, Audio In/Out, Network, Game Port, PS/2 Keyboard
Port (used by integrated keyboard), PS/2
Pointing Device Port (used by integrated TuffPoint)
Power AC Terminal Block
*Specifications are subject to change without notice.

ORDERING INFO
4513KP...Division 1 Y-Purge Flat Panel PC, 15.0"
4515KP...Division 1 Y-Purge Flat Panel PC, 18.1"
4517KP...Division 1 Y-Purge Flat Panel PC, 20.1"

AVAILABLE OPTIONS
304...Safety Glass
451...Capacitive Touch Screen
585...Wall Mount Brackets
784...Windows 2000 Pro
787C...Vortex Cabinet Cooler, NEMA 4X
796...Thermo Electric Heater with Solid State Control
801...Sunlight Readable Display
823...Windows XP 9026...Pack-Seal Kit
9026...Pack-Seal Kit
9047...Air Connection Kit
9167...NEMA 4X 42" Pedestal, Floor Mount
940...NEMA 4X Pedestal Top, Non-Integrated Units
941...NEMA 4X Pedestal Swivel Top, Non-Intg. Units
