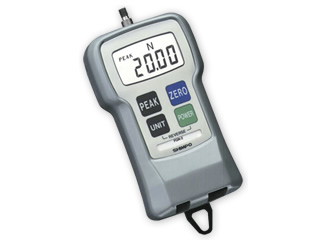

Đo lực kéo nén FGN-B

Có: 0 sản phẩm trong giỏ

Đo lực kéo nén FGN-B
  • Mã SP:
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 5361
  • Easy to read upside down or right side up. This feature is indispesable while the unit is mounted on measuring stand.
    N/kgf/lbf selectable
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Specifications

Model FGN-2B FGN-5B FGN-20B FGN-50B
Capacity(R.C.) ±19.61N
±2.000kgf
±5.000lbf		 ±49.03N
±5.000kgf
±10.00lbf		 ±196.1N
±20.00kgf
±50.00lbf		 ±490.3N
±50.00kgf
±100.0lbf
Measuring range ±20.00N
±2.000kgf
±5.000lbf		 ±50.0N
±5.000kgf
±10.00lbf		 ±200.0N
±20.00kgf
±50.00lbf		 ±500.0N
±50.00kgf
±100.0lbf
Resolution 0.01N
0.001kgf
0.001lbf		 0.01N
0.001kgf
0.01lbf		 0.1N
0.01kgf
0.01lbf		 0.1N
0.01kgf
0.1lbf
Unit kgf(gf), N, lbf(ozf)(Easy Reverse display fundtion)
Measuring mode Normal measuring & Peak measurings
Display cycle 0.05,0.1,0.2,0.3,0.5,1 second
Sampling Rate 1000 times/second
Accuracy ±0.2% of R.C. ＋1/2 digit at 23℃
Influence of temperature Span:±0.02%℃ Zero point drift/cancelled by tracting
Display 4 digit 12mm high LCD 1 display at tensile force (Reverse display selectable)
Other displays
1."LOW BAT"(Battery is low)
2."BAT"(Battery is being charged)
3."OVR"(Overloaded)
4."PEAK"(Peak hold mode)
Overload 200% of R.C.
Tracking Selectable by ON/OFF
Power NiCd battery % AC adapter(DC9V 200mA), Measuring can be possible during charging
Auto Power Off In 10 minutes, Continuous operation is possible while powering by AC adapter
Temperature range 0～40℃
Dimensions 147mm(L)×75mm(W)×38mm(H)
Weight Approx.450g
Accessories(Included) Each of Flat head, Hook, Chisel, Vee, Cone, Extension Rod,Carring case, and AC adapter

Dimensions
