Máy Đo Mô Men Xoắn TCC
  • Mã SP: DMMXTNC-TCC
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 7203

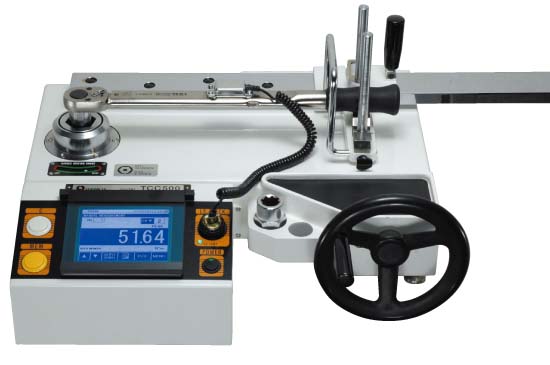

  • Máy Đo Mô Men Xoắn TCC
    - Digital Torque Wrench Tester with Loading Mechanism
    - Features Two Sensors for Wide Range Torque Capacity
    - Tool Management Control Software with Touch Screen Display
    - Limit Switch Testing Station to Verify Function of Tools with LS
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Máy Đo Mô Men Xoắn TCC
Accuracy ±1% + 1digit


Model CH Capacity Torque Wrench Max. Effective Length Square Inlet Drive
 Dimensions [mm] Approx. Weight
Min.-Max. 1 Digit Min. - Max. 1 Digit [mm] [mm] [in] L' B H L1 B1 H1 [kg]
TCC100N 1 N.m
4-100		 N.m
0.02		 ft.lbs
4-75		 ft.lbs
0.02		 440 12.7 1/2 670 370 330 430 230 181 26
2 1-25 0.05 1-15 0.005 9.53 3/8
TCC100N-D 1 4-100 0.02 4-75 0.02 12.7 1/2
2 cN.m
20-500		 cN.m
0.1		 0.2-3.7 0.001 6.35 1/4
TCC500N 1 20-500 0.1 15-370 0.1 1030 19.05 3/4 1165 558 392 555 415 235 53
2 4-100 0.02 4-75 0.02 12.7 1/2
TCC1000N 1 50-1000 0.2 50-700 0.2 1700 25.4 1 1865 771 508 875 638 300 135
2 20-500 0.1 15-370 0.1 19.05 3/4


  "-D" model is for driver application.

  Common Specification

DISPLAY 5.7 inch STN color LCD 320 x 240 dots
2 colors (Blue, White) CFL Back light
SWITCH Touch Panel
DATA MEMORY 1. Click direct reading mode
Max. 2730 data with 1 measurement point x 3 times
Max. 1488 data with 3 measurement point x 3 times
Max. 780 data with 5 measurement point x 5 times
Max. 2340 data with 1 measurement point x 5 times
Max. 1170 data with 3 measurement point x 5 times
Max. 762 data with 3 measurement point x 10 times
2. Manual mode 200 data
TORQUE WRENCH / DRIVER REGISTRATION Torque wrench / driver registration Max. 1000 (Model name, serial number, Measuring point, Number of Measuring, accuracy, Measurement Channel, Inspector name, old measuring record)
In case of Single loading direction
MEASURING MODE Click (signal) mode / Direct  reading mode / Manual mode
CHANNEL EXCHANGE 2 channel exchange switch
OK, NG JUDGEMENT Accuracy setting (1-99%), OK, NG
STATICALLY PROCESSING Number of sample, Max. value, Min. value, Average (available with Manual mode)
ZERO ADJUSTMENT  Auto (Auto zero switch)
INTERFACE Serial interface (RS-232)
USAB-interface (USB memory stick)
RESET Manual Button / Auto reset (0, 1-5 sec)
OTHER FUNCTION M button function (Data zoomed in display)
Limit Switch work confirming lamp
OPERATION TEMPERATURE 0 ~ 40 [°C]
POWER SUPPLY AC 100V - 240V 50/60Hz


  Standard Accessories

Model Hex Width Across Flat Adapter [mm] Down Adapter Ratchet Adapter Others
TCC100N 12.7, 10, 13, 19
12.7, 12, 14, 17		 DA3-2
DA4-3		 RA3
RA4		 Power cable
Application software CD
PC connection cable (No. 561)
Tohnichi Proprietary USB memory stick
TCC100N-D DA4-3 RA4
TCC500N 12.7, 10, 13, 19
12.7, 12, 14, 17
19.05, 17, 22, 27
19.05, 19, 24, 30		 DA4-3 RA4
DA6-4 RA6
TCC1000N 19.05, 17, 22, 27
19.05, 19, 24, 30
25.4, 36, 48
25.4, 41, 500		 DA6-4 RA6
DA8-6 RA8
