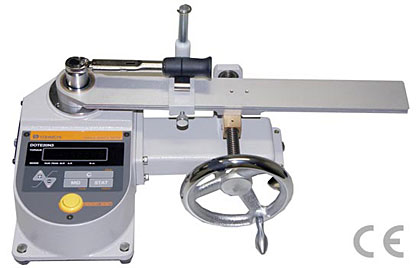

Máy Đo MôMen Xoắn Tohnichi DOTE3-G
  • Mã SP: DMMXTNC-DOTE3G
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 7610
  • Máy Đo MôMen Xoắn Tohnichi DOTE3-G
    - Ideal for torque wrench calibration
    - Loading device applies load to the effective length point, which allows for more stable testing conditions.
    - 99 Data Memory Storage and Expanded Statistical Data Functions
    - RS232C output for downloading to PC or Printer (EPP16M2)
    - Universal AC Adapter (AC100-240 V +/-10%) can be used in most countries worldwide.
    - New Version DOTE3-G features multiple units of measure through keypad setup.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Máy Đo MôMen Xoắn Tohnichi DOTE3-G


Model DOTE3-G:  Multiple Unit of Measure Models
Accuracy +/-1% of indicated value

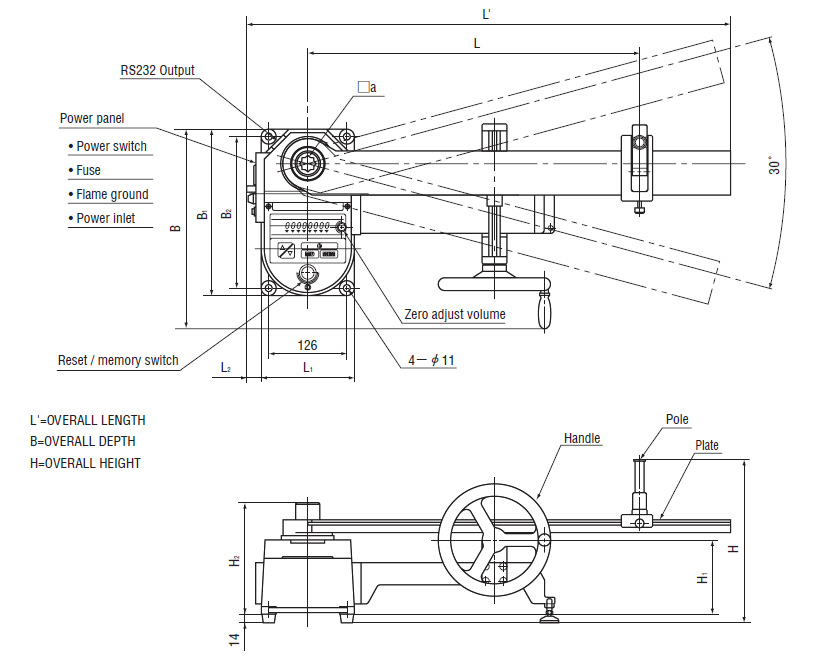

Model Torque Range Inlet Drive Torque Wrench Max. Effective Length Dimensions [mm] Weight Approx.
cN•m N•m kgf•cm kgf•m lbf•in lbf•ft
Min.- Max. 1 digit Min.- Max. 1 digit Min.- Max. 1 digit Min.- Max. 1 digit Min.- Max. 1 digit Min.- Max. 1 digit mm in. mm in. L' B H B1 B2 L1 L2 H1 H2 kg
DOTE20N3-G 200-2000 0.5 2-20 0.005 20-200 0.05 - - 18-180 0.05 - - 9.5 3/8 410 15 3/4 511 263 221 245 221 150 5.6 87 142 11
DOTE50N3-G - - 5-50 0.01 50-500 0.1 - - 44-440 0.1 3.6-36 0.01
DOTE100N3-G - - 10-100 0.02 100- 1000 0.2 - - 88-880 0.2 7.3-73 0.02 12.7 1/2
DOTE200N3-G - - 20-200 0.05 200- 2000 0.5 - - 170- 1700 0.5 15-150 0.05 660 26 771 323 278 265 241 15.6 117 162 13
DOTE500N3-G - - 50-500 0.1 - - 5-50 0.01 440- 4400 1 36-360 0.1 19 3/4 1020 40 1141 394 304 139 201 24
DOTE1000N3-G - - 100- 1000 0.2 - - 10-100 0.02 880- 8800 2 73-730 0.2 25.4 1 1650 65 1771 509 361 222 45





note

  1. “-G” models feature 4 changeable units of measure through keypad set up
  2. ISO factory certificate of calibration is included and data is supplied in SI units only.
  3. NIST Traceable certificates are available upon request for an additional fee. For NIST certifications any one of the units of measure may be selected to be shown on the certificate.
  4. SI unit only model version is available to order upon request.




Standard Accessories

   Replacement Part # for Standard Hex Adapters   Replacement Part # for Drive Adapter

Model Down Adapter (Female) Hex Adapter (Male) AC Adapter
(power supply)
Part # mm in. mm
DOTE20N3-G 296 6.3 1/4 10, 13, 19
12, 14, 17		 #BA-6
DOTE50N3-G
DOTE100N3-G 277 6.3 1/4
297 9.5 3/8
DOTE200N3-G - - - 17, 22, 27
19, 24, 30
DOTE500N3-G - - - 22, 27, 29
30, 32, 36
DOTE1000N3-G 299 19.0 3/4 41, 50
36, 46

Part No. Hex Adapter Drive Size
mm inch
02T07237 10, 13, 19
3/8
03T07237 12, 14, 17
3/8
07T07086 10,13,19
1/2
08T07086 12,14,17
1/2
01T07254 19, 24, 30
3/4
02T07254 17, 22, 27
3/4
01T09662 30, 32, 36
3/4
02T09662 22, 27, 29
3/4
02T36938 41, 50
1
01T36938 36, 46
1

Part No. Down Adapter Male Drive Female Drive
296 DA3-2 9.35 6.3mm
277 1/2 to 1/4 12.7 6.3mm
297 DA4-3 12.7 9.5mm
299 DA8-6 25.4 19.0mm




Optional Accessories:



Model Description Type Usage Time Weight Size Applicable for Model Series
BP-100-3 External Battery Pack Rechargeable Lithium-ion 7 hrs 225g W109mmXD73.6mmXH23mm

DOTE3(-G), LC2 (-G),TDT2(-G), TME2





Cables





  Excel Receiver Software complimentary with cable purchase. Cable #382 also available for connection to EPP16M Tohnichi Printer



Common Specification



DATA MEMORY 99 data
ARITHMETIC FUNCTION Sampling, Maximum, Minimum, Mean
MEASUREMENT MODE PEAK / RUN
ZERO ADJUSTMENT  Automatically by Pressing C key
DATA OUTPUT RS232C compliant (Factory default PC output. Printer output changeable via keypad setup)
RESET Manual /Auto (0.5 ~ 5.0 sec freely changeable by 0.1 sec.)
OPERATING CONDITION [°C] Temperature 0 ~ 40
POWER SOURCE AC [V] 100 ~ 240±10% 50/60Hz Auto shift.
POWER CONSUMPTION [W] Less than 5
