FEATURES ::

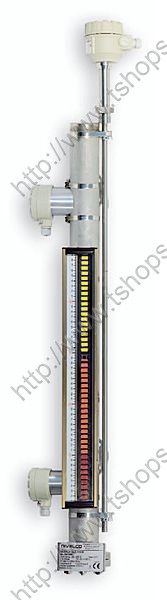

Clearly visible optical display
Max. 5500mm measuring range
± 10mm accuracy
Max. 100 bar medium pressure
PED (Pressure Equipment Directive) approval
Optional magnetostrictive level transmitter
Optional magnetic limit switches
APPLICATIONS ::
Oil industry
Chemical industry
Power industry
Boilers
Pressurized vessels
SPECIFICATIONS ::
Center to center distance: 500-5500mm
Process connection: DN15-DN50 or ANSI 1/2-2” flanges
Process pressure: max. 100 bar
Material of wetted parts: 1.4571 / 1.4404 stainless steel / Ti
Process temperature: -40°C…+250°C
Medium density: with stainless steel float: 0.8-1.25 kg/dm³ / with titan float: 0.5-0.9 kg/dm³
Optional limit switches: ATEX II (1) [Ex ia] IIC / IIB T4...T6 Ga certified level switch
Optional level transmitter: NIVOTRACK MT-500 series magnetostrictive transmitters
