Đo tốc độ động cơ DT-311N
  • Mã SP:
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 5471


  • Compact&light design is realized,the smaller than 1/3 of the conventional model.
    8 times brighter luminen at low speed is assured.(in comparison with shimpo previous model.)
    Bright flashes are emitted in entire measuring range:from 40.0 up to 35,000rpm.
    Connector for external signal is standardized. Tune,delayed timing flashes by external signal is possible.
    Flash control realized no drift by digital control. Flashing cycle is extremely stable.
    Figure can be moved easily while in tuning condition. Phase adjustment function is built in.

  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Specifications

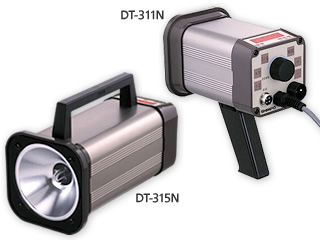

Model DT-311N DT-315N
Internal
Mode		 Flashing range 40.0-35,000 rpm
Accuracy ±0.01% of reading
Resolution 0.1rpm:40.0 to 4,999.9rpm
0.2rpm:200.1 to 7,999.8rpm
0.5rpm:200.1 to 9,999.5rpm
1rpm:200.1 to 35,000rpm
Phase Shift Use ＋/－ push buttons(360-in 6 seconds)
Display Update Time 0.2 sec approx.
Output Signal Synchronous,400 msec. Pulse output, 0 to＋12 VDC amplitude (approx.),4.7kΩ inpedance
Rate Multiplier/Divider Multiply by 2, divided by 2
External
Mode		 Flashing range 0.0-35,000 rpm
Accuracy ±0.01%±1 digit
Phase Shift 0-359°at 40-10,000 rpm
Delay Time 0-2,000 ms at 40-10,000 rpm
External Trigger Input Signal LO level:0-0.8 VDC, HI level:2.5-12 VDC, pulse width 50μ sec min.
Input Impedance 4.7kΩ at 12V/6.8kΩ at 0V
General Display 5 digits, 10 mm high,LED
Flash tube Power/Life Xenon,10W max.(100 million flashes)
Flash Duration 10-40 μsec
Sensor Power Supply 12VDC(40mA)
Low Battery Indicator Display shows all L's
Protective Construction -
Power Requirement 100VAC,110VAC,230VAC,30VA
Please specify when ordering		 Internal Battery Pack Battery charger
(100VAC,230VAC,30VA
Please specify when ordering)
Operating Temperature Range 0-40℃
Weight 1.2kg 2kg
Dimensions 185×120×219mm 250×120×252mm
Standard Accessories Handle, flash tube Handle,flash tube and
AC adapter/changer

Dimensions(DT-311N)

Dimensions(DT-315N)
