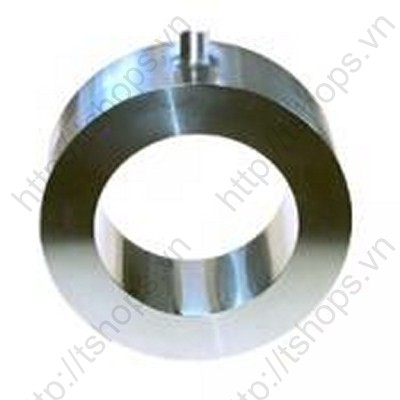

Inline diaphragm seal for general applications
  • Mã SP: BCFLB-IDSA
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 6233
  • Suitable for mounting to bourdon tube pressure gauges and pressure transmitters. The inline diaphragm seal with flange connection in cell design is suited for measuring aggressive, highly viscous media and for high process temperatures.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Features
  • Circular diaphragm of stainless steel, slightly grooved, welded by laser, special materials upon request
  • Volume optimized diaphragm base
  • Connection of measuring instrument:
    · directly welded
    · directly screwed
    · with temperature decoupler
    · with capillary
Options
  • Material certificate acc. to DIN EN 10204-3.1
  • Special materials upon request
  • Connection to zone 0 with flame arrester
  • Type series
    DP2180;DP2170;DP2160;DP2190;DP2182
    DP2380;DP2370;DP2360;DP2390;DP2382
    DP2480;DP2470;DP2460;DP2490;DP2482;
    DP2580;DP2570;DP2560;DP2590;DP2582;
    DP2680;DP2670;DP2660;DP2690;DP2682;
    DP2780;DP2770;DP2760;DP2790;DP2782;
    DP2880;DP2870;DP2860;DP2890;DP2882;
    DP2980;DP2970;DP2960;DP2990;DP2982;
    DP6180;DP6170;DP6160;DP6190;DP6182;
    DP6280;DP6270;DP6260;DP6290;DP6282;
    DP6380;DP6370;DP6360;DP6390;DP6382;
    DP6480;DP6470;DP6460;DP6490;DP6482;
    DP6580;DP6570;DP6560;DP6590;DP6582;
    DP6680;DP6670;DP6660;DP6690;DP6682;
    DP6780;DP6770;DP6760;DP6790;DP6782;
    DP6880;DP6870;DP6860;DP6890;DP6882
Application area

● Chemicals
● Pharmaceuticals
● Food industry
