87V Ex - Intrinsically Safe Multimeter
  • Mã SP: 87V EX - INTRINSICALLY SAFE MULTIMETER
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 3944

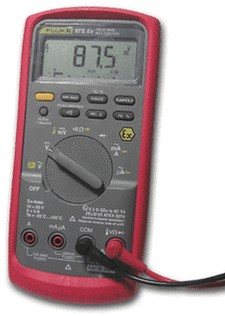

  • For reliable safety inside the Ex-hazardous area: the multimeter 87V Ex. With the robust holster the unit is well protected even in the toughest conditions.
    Features:

    CAT III 1000V / CAT IV 600V
    Min / Max / Avg function
    41/2 digit display with bar indicator

  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
For reliable safety inside the Ex-hazardous area: the multimeter 87V Ex. With the robust holster the unit is well protected even in the toughest conditions.
Features:
  • CAT III 1000V / CAT IV 600V
  • Min / Max / Avg function
  • 41/2 digit display with bar indicator
  • Temperature measurement using thermocouple, type K
  • Measurements up to 1000V / 10A (outside the Ex-hazardous area)
  • Background lighting

Measuring technology inside the Ex-hazardous area is always a critical subject. This digital multimeter from ecom instruments GmbH offers a safe, compact solution, as the 87V Ex allows safe measurements both inside and outside (maximum of 10 A/1000V) of the Ex-hazardous area. The multimeter is certified to ATEX (Directive 94/9/EC) for use in Ex-zones 1 and 2. An additional safety feature is the test according to EN 61010 -1 for CAT III 1000V and CAT IV 600V.

Technical data:
  • Ambient temperature: -20°C ... +50°C
  • Reference humidity range: 0% ... 80% r.F.(0°C ... 35°C)
  • Power supply: 1 x 6LR61(9V-Block battery) according to IEC; type-approved
  • Operating time: approx. 400 h (without background lighting)
  • Dimensions: 201 x 95 x 52 mm (with holster)
  • Weight: approx. 650g (with Holster)

Ex-designation
II 2 G EEx ia IIC T4
Type-examination certificate
ZELM 05 ATEX 0274
