IWT-5000A dùng để thử xung điện áp các loại dây cuốn (như dây cuốn máy biến áp, cuộn cảm, động cơ)
Điện áp thử: 200V~5000V (±3%)
Năng lượng ra: 0.25J (Max)
Giải điện cảm của cuộn dây thử: 10μH và lớn hơn
Tỷ lện lấy mẫu: 8bit / 10ns (100MHz)
Bộ nhớ: 5000 Byte
Điện trở ra: 10MΩ
Hiển thị: màn hình 5.6 inch màu LCD (320 x 234)
Các phương phát so sánh: Area Size Comparison, DiffZone Comparison, Corona Amount, Comparison Corona Number Comparison
Bộ nhớ dạng sóng: 360 Sets of wave-forms
So sánh đầu ra: Pass/Fail, beeping
Kiết nối máy tính: RS-232, I/O, USB 2.0
Nhiệt độ làm việc 25 ~ 40

nguồn: 110V/220V AC - 50/60Hz
Kích thước: 31cm x 15cm x 18cm
Trọng lượng: 5.4Kg
cung cấp gồm:
1 máy chính
1 dây thử cao áp
1 dây cấp nguồn
1 cáp USB
1 cáp RS-232
1 CD (Driver và HDSD)
1 cáp RS-232 to USB

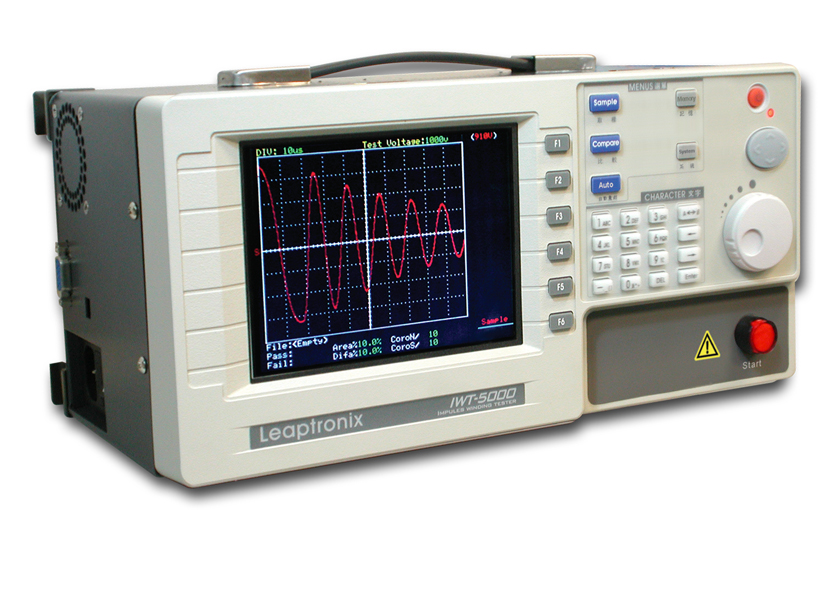

Impulse Winding Tester





Introduction



IWT-5000A winding tester is a coil (such as voltage transformer, inductance, motor) testing instrument that tests self-insulating property of the coil. The influences of winding materials, magnetic materials, and framework, also extra fabrication decreases the insulating property of coil layers along with the jumpers and jacks.



The IWT-5000A adopts the technology of high-speed sampling rate to store the sample waveform of the standard (master) coil in the instrument. By comparing the waveform results of the test coil to the master, the defect in the DUT can be found easily. Moreover, the IWT-5000A judges the quality of the testing coil according to the parameter set by the user.



Features

  • With 200V~5000V programmable impulse voltage, it is capable of low-energy testing, without damaging the coil.
  • Provide high-speed sampling rate of 100MHz, which enhances the testing ability for partial discharges.
  • 320 x 234 color LCD display clearly for the user to view waveform and test results.
  • Provide user-friendly operation interface.
  • Low inductance during impulse testing, minimum to 10uH.
  • Provide 4 kinds of detection modes: AreaSize Comparison, DiffZone Comparison, Corona Amount Comparison, and Corona Number Comparison.
  • The comparative result shows Pass/Fail directly, informing operators the detect test result within a short period of time.
  • Offer measurement functions for voltages, timing and frequencies, which provide user a carry-out analysis in detail.
  • Able to save 360 sets of standard waveform result of the coil for users to download and implement into testing.
  • Provide RS-232 to PC connection. Just using standard text command, you can writing control program and data for communication easily. Its the best way to set up the testing system for mass production.
  • To make analysis easier, IWT-5000A offers USB 2.0 interface to connect with PC for users to upload or download the parameters of waveforms results.
  • Provide the control function for external I/O, such as the Handler adopts standard D-SUB 15-pin connector for connecting with automatic or semi-auto testing system.
  • Provide self-calibration function. No need to send back for the vendor calibration. Saving time and cost.

Specification

  • Testing Voltage: 200V~5000V (±3%)
  • Output Energy: 0.25J (Max)
  • Inductance Range Of Test Coil: 10μH and above
  • Sampling Rate: 8bit / 10ns (100MHz)
  • Sampling Memory Depth: 5000 Byte
  • Input Resistance: 10MΩ
  • Display Measure: 5.6 inch Colored LCD (320 x 234)
  • Comparison Measures:
    Area Size Comparison, DiffZone Comparison, Corona Amount, Comparison Corona Number Comparison
  • Storage Wave-forms: 360 Sets of wave-forms
  • Comparison Output: Pass/Fail, beeping
  • Communication: RS-232, I/O, USB 2.0
  • Temperature: 25 ~ 40
  • Power: 110V/220V AC
  • Frequency Range: 50/60Hz
  • Dimension: 31cm x 15cm x 18cm
  • Weight: 5.4Kg

PC System Requirement

  • Operating System: Win 7/ Vista/ XP
  •
  • To make analysis easier, IWT-5000A offers USB 2.0 interface to connect with PC for users to upload or download the parameters of waveforms results.
  • Provide the control function for external I/O, such as the Handler adopts standard D SUB 15-pin connector for connecting with automatic or semi-auto testing system.
  • Provide self-calibration function. No need to send back for the vendor calibration. Saving time and cost.
  • Provide the convert software for Excel



Standard Accessories

  • Main unit x1
  • High voltage test line x1
  • AC power cord x1
  • USB cable x1
  • RS-232 Cable x1
  • CD x1 (Driver and user manual are include)
  • RS-232 to USB cable x1
