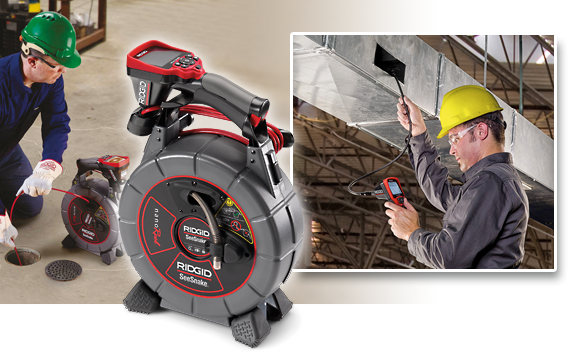

SeeSnake Inspection Systems

Có: 0 sản phẩm trong giỏ

SeeSnake Inspection Systems
  • Mã SP: NSCNTT-SS
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 3997
  • Easy-to-use professional systems
    Lightweight
    Compact and robust design
    Scratchproof sapphire crystal lens
    Multi-stage adjustable high-performance LEDs
    Camera head and push cable waterproof
    up to 8.1 bar
    Push cable metre counter (microReel)
    Integrated 512 Hz position finder
    (microReel, nanoReel)
    Up to 30 m fibreglass reinforced push cable
    Mains independent operation
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Technical Datamicro CA-300SeeSnake microDrainSeeSnake microReelSeeSnake nanoReel
Article no. 3.110.007.041 3.110.007.042 3.110.007.043 3.110.007.044
Probe Type Swan neck, semi-flexible Fibreglass reinforced push cable
Dimensionen Length 0.9 m Length 10 m (ø 8,3 mm) Length 30 m (ø 6,7 mm) Length 25 m (ø 6,3 mm)
Navigates 90° bends Lines ≥ ø 40 mm Lines ≥ ø 50 mm Lines ≥ ø 30 mm
Visibility 10 mm up to ∞ 10 mm up to ∞
Display 3.5 inch colour TFT micro CA-300
Camera head Diameter 17 mm 22 mm 25 mm 15.5 mm
Design anonised aluminium shockproof cover with sapphire crystal lens
Protection waterproof up to 0.3 bar waterproof up to 8.1 bar waterproof up to 7 bar waterproof up to 7 bar
Illumination 4 LEDs 3 Luxeon LEDs 3 Luxeon LEDs 6 LEDs
Video / photo resolution 320 x 240 pixels (video),
640 x 480 pixels (photo)
510 x 496 pixels (NTSC),
628 x 586 pixels (PAL)
510 x 496 pixels (NTSC),
628 x 586 pixels (PAL)
648 × 488 pixels (NTSC),
768 x 576 pixels (PAL)
Interfaces and memory Mini USB, SD card slot, 3.5 mm jack socket (video / audio in / out), 235 MB internal memory System interface for micro CA-300
Functions
and features
Colour camera with 2x zoom, 4 x 90° image rotation function, multi-adjustable dimmable LEDs, video recording (MPEG-4), photo documentation (JPEG), audio recording Colour camera Colour camera, integrated 512 Hz transmitter, push cable meter counter Colour camera, integrated 512 Hz transmitter
Power supply 3.7 V li-ion rechargeable battery (battery time approx. 3.5 h) or 230 V mains power via micro CA-300
(mains or battery operation, battery time approx. 1.5 h)
Environmental conditions 0 °C to 45 °C,
15 % to 85 % RH
5 °C to 46 °C,
5 % to 95 % RH
5 °C to 46 °C,
5 % to 95 % RH
0 °C to 46 °C,
5 % to 95 % RH
Dimensions L x W x H 267 x 105 x 60 mm 324 x 115 x 483 mm 324 x 114 x 483 mm 337 x 168 x 445 mm
Weight 2.5 kg 3.9 kg 4.7 kg 4.1 kg
Scope of delivery Standard micro CA-300 with 0.9 m probe, mirror, hook, magnet attachment li-ion rechargeable battery with charger, mains adapter, headset, RCA cable, USB cable, SD memory card (4 GB), carry case, user guide SeeSnake microDrain incl. micro CA-300, one guide ball, connection cable for micro CA-300, user guide SeeSnake microReel incl. micro CA-300, two guide balls, connection cable for micro CA-300, user guide SeeSnake nanoReel incl. micro CA-300, two guide balls, connection cable for micro CA-300, user guide
Optional Probe extension 90 cm or 180 cm, camera head ø 6 mm / length 100 cm or 400 cm, car charger with integrated 512 Hz transmitter without integrated push cable metre counter

The micro CA-300 is a compact professional IP65 video inspection scope designed to allow you to carry out inspections of hard-to-reach diagnosis loca-tions with small or narrow openings.

The micro CA-300 comes standard equipped with a semi-flexible, 0.9 m long video scope probe which can be replaced with a probe with an ultra-slim 6 mm camera head and an optionally available push cable which can extended to 9 m if necessary.

The anodised aluminium camera head is equipped with 4 super bright LEDs which provide high detailed inspection results that can be viewed on the crisp, clear 3.5-inch LCD colour display and which can be documented as a photo or video with voice annotations.

The system itself is incredibly easy to use. It is equipped with an intuitive multilingual menu navigation system and a variety of innovative features including a 4x image rotation function, a 2x digital zoom and a multi-adjustable brightness control which allow you to carry out detailled high precision inspections.

In addition to the internal memory, there is also a SD card slot for flexible memory expansion.

The integrated USB interface can be used as an alternative to an SD card to transfer data to a PC both quickly and easily.

The USB connecting cable is included in the scope of delivery along with a selection of extremely useful tools like a side-view mirror, a hook attachment and a magnet attachment which you can be used to carry out even more applications.
