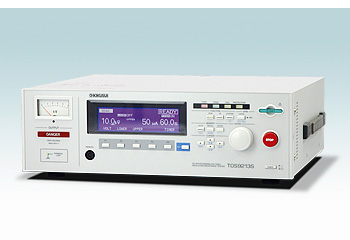

Thiết bị thử cách điện cao áp TOS9213AS
  • Mã SP: TOS9213AS
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 2488
  • The TOS9213AS, DC Withstanding Voltage/Insulation Resistance Tester, is the test instrument that can handle the insuration test with high voltage and high resolution required for the evaluation of the PV module, Cable, Connector, and Junction Box
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
The TOS9213AS, DC Withstanding Voltage/Insulation Resistance Tester, is the test instrument that can handle the insuration test with high voltage and high resolution required for the evaluation of the PV module, Cable, Connector, and Junction Box. The TOS9213AS is equipped with functions of the DC withstanding voltage testing and the insulation resistance testing accompanied with the features and performance of Kikusui's high-end model TOS9200 series, and it extends additional features and specifications exclusively applied to the PV module testing. Furthermore, the TOS9213AS improves the current measurement accuracy of the DC withstanding voltage testing from the original specification of the TOS9000 series.


Up to 10 kV/5 mA with a maximum output of 50 W in DC withstanding voltage test
Perform insulation resistance testing in the range of -25 V to -1500 V / 0.01 M to 9.99 G
Applies for the testing of IEC61730-2 standard
High-precision current measurement, 1 μA of the setting resolution for judgement
Low output ripple of 100V p-p at 10 kV with consideration of capacitive load
Rise-time control function makes a voltage to be increased slowly and it will not give effect of the stress to the PV module
The judgement method of the insulation resistance test can be selected by using the current value in addition to the resistance value
The phenomena of voltage appearance by the dielectric absorption, the forcible discharge timer function can be set up to 300 seconds
The TOS9213AS, DC Withstanding Voltage/Insulation Resistance Tester, is the test instrument that can handle the insuration test with high voltage and high resolution required for the evaluation of the PV module, Cable, Connector, and Junction Box. The TOS9213AS is equipped with functions of the DC withstanding voltage testing and the insulation resistance testing accompanied with the features and performance of Kikusui's high-end model TOS9200 series, and it extends additional features and specifications exclusively applied to the PV module testing. Furthermore, the TOS9213AS improves the current measurement accuracy of the DC withstanding voltage testing from the original specification of the TOS9000 series.
  • Up to 10 kV/5 mA with a maximum output of 50 W in DC withstanding voltage test
  • Perform insulation resistance testing in the range of -25 V to -1500 V / 0.01 M to 9.99 G
  • Applies for the testing of IEC61730-2 standard
  • High-precision current measurement, 1 μA of the setting resolution for judgement
  • Low output ripple of 100V p-p at 10 kV with consideration of capacitive load
  • Rise-time control function makes a voltage to be increased slowly and it will not give effect of the stress to the PV module
  • The judgement method of the insulation resistance test can be selected by using the current value in addition to the resistance value
  • The phenomena of voltage appearance by the dielectric absorption, the forcible discharge timer function can be set up to 300 seconds
