UP-100S Ultraprobe 100 Analog Ultrasonic Inspection System

Có: 0 sản phẩm trong giỏ

UP-100S Ultraprobe 100 Analog Ultrasonic Inspection System
  • Mã SP: UP-100S
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 4278
  • HOW ULTRASONIC TECHNOLOGY WORKS FOR YOU.
    The Ultraprobe senses high frequency sounds produced by operating equipment, leaks and electrical discharges. It electronically translates these signals by heterodyning them down into the audible range so that a user can hear these sounds through a headset and see them as intensity increments on the meter.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
HOW ULTRASONIC TECHNOLOGY WORKS FOR YOU
The Ultraprobe senses high frequency sounds produced by operating equipment, leaks and electrical discharges. It electronically translates these signals by heterodyning them down into the audible range so that a user can hear these sounds through a headset and see them as intensity increments on the meter. Heterodyning works the same as a radio in that it accurately transforms the sounds so that they are easily recognized and understood. The advantage of Ultrasound technology is simple to understand. Ultrasound is a high frequency, short wave signal. When compared with the sounds we humans can hear, the size of the sound waves are extremely small. This property provides advantages:
  • Ultrasound is very directional
  • Ultrasound can be easily blocked or shielded
  • Ultrasound instruments can be used in noisy environments
  • Ultrasound changes provide early warning of potential problems
  • Ultrasound instruments are easy to use

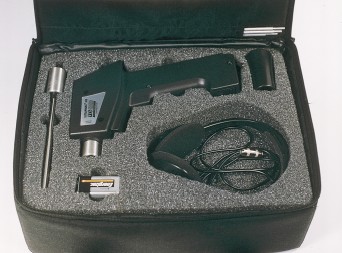

UP100S: ULTRAPROBE 100 SCANNER KIT
UP100 pistol housing with LED bargraph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing probe, lightweight foam lined headset, 9 volt alkaline battery (replaceable), cordura/nylon soft pack and comprehensive instruction manual.

UP100C: ULTRAPROBE 100 STETHOSCOPE KIT
UP100 pistol housing with LED bargraph meter, 8 position sensitivity selection, low battery indicator, stethoscope module, lightweight foam lined headset, 9 volt alkaline battery (replaceable), cordura/nylon soft pack and comprehensive instruction manual.

UP100SC: ULTRAPROBE 100 STETHOSCOPE / SCANNER KIT
UP100 pistol housing with LED bargraph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing probe, stethoscope module, lightweight foam lined headset, 9 volt alkaline battery (replaceable), cordura/nylon soft pack and comprehensive instruction manual.

UP100KT: ULTRAPROBE 100 KIT
UP100 pistol housing with LED bargraph meter, 8 position sensitivity selection, low battery indicator, scanning module, rubber focusing probe, stethoscope module, warble tone generator with battery recharger, lightweight foam lined headset, 9 volt alkaline battery (replaceable), cordura/nylon soft pack and comprehensive instruction manual.
