Diaphragm control valves MVP

Có: 0 sản phẩm trong giỏ

Diaphragm control valves MVP
  • Mã SP: IB0RT-MVP
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 4550
  • Series: MVP

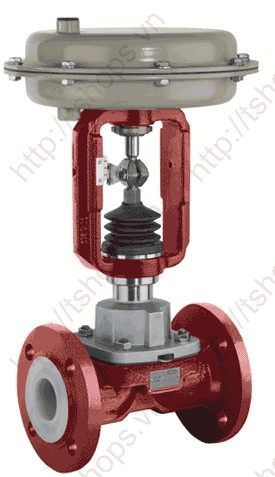

    Diaphragm control valves, with column or compact design actuator
    Design: ISO or ISO and flanges drilled according to ASME/ANSI

    Housing material: Ductile cast iron EN-JS 1049
    Lining material: PFA/PTFE
    Nominal size: DN 15 - 150 / 1/2" - 8"
    Nominal pressure: PN 16/10
    Flange: ISO 7005-2 Type B
    Face to face (mm): 130 to 480
    Actuation: remote actuated
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Series:     MVP
      Diaphragm control valves, with column or compact design actuator
Design:     ISO or ISO and flanges drilled according to ASME/ANSI

Housing material:     Ductile cast iron EN-JS 1049
Lining material:     PFA/PTFE
Nominal size:      DN 15 - 150 / 1/2" - 8"
Nominal pressure:      PN 16/10
Flange:      ISO 7005-2 Type B
Face to face (mm):      130 to 480
Actuation:      remote actuated
