Hermetic Booster
  • Mã SP: LACEC-620
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 4991

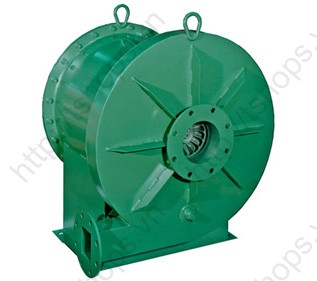

  • Eclipse Hermetic Boosters are used to increase the pressure of any gas or air/gas mixture not corrosive to aluminum or steel. They deliver gas at any volume within the capacity range of the booster with a relatively constant pressure. These boosters are UL listed when handling natural or manufactured gases. [The discharge pressure is the total of the booster added pressure plus incoming gas pressure.]

    The Hermetic Booster's design is unique because its motor and rotor are enclosed in an airtight steel housing. No shaft seal is required, which eliminates the possibility of shaft seal leakage. Sealed electrical connections are made through an explosion-proof conduit, and an explosion proof junction box is also included. Standard shaft Class 1, Group D explosion -proof motors are standard.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Type:  Hermetically Sealed
Number of Sizes:  34
Capacity Range:   5,300 to 149,000 (SCFH Natural Gas)
150 to 4,200 (m3/hr)
Pressure:

6 to 38 added ("w.c.)

15 to 95 added (mbar)
Outlet Positions:  4
Typical Applications:  Raise pressure of fuel gas when supply pressure is insufficient to meet demand. Epoxy coating available for digester gas applications in landfills or waste water treatment plants.
Key Attributes:  Zero leakage design. Robust, reliable performance.

Eclipse has been producing gas boosters for over 80 years. This experience has led to a design with a proven history of many installations with a long reliable operational life.


  • The hermetic design eliminates the maintenance and wear problems of a shaft seal.
  • The flat radial blades of the centrifugal rotor avoid dirt and particle accumulation.
  • The motor and rotor can be easily removed without disturbing the piping.
