Sealless Magnetic Driven Centrifugal Pumps Type KML/KMB/KMV

Có: 0 sản phẩm trong giỏ

Sealless Magnetic Driven Centrifugal Pumps Type KML/KMB/KMV
  • Mã SP: EM0DK-KML2
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 4243

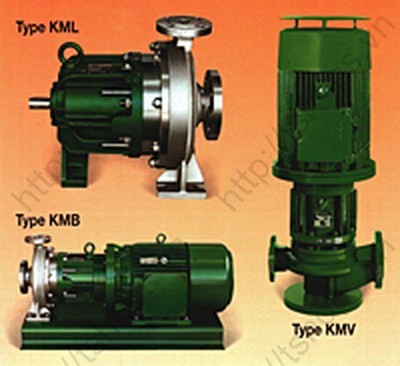

  • DICKOW pumps the series KM are sealless centrifugal pumps. The static containment shell forms a closed system with hermetically sealed liquid end. Model AMB pumps match ANSI casing dimensions.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền


Item #

Maximum Capacity (Flow Rate)

Differential Head

Maximum Temperature

Maximum Allowable Working Pressure

Maximum Transmissible Power

KML 70m³/h (300 USgqm) 65 mLC (213 ft) 30°C to 200°C (390°F) 16 bar (232 psi) 17 kW at 2900 rpm (28 HP at 3500 rpm)
KMB 70m³/h (300 USgqm) 65 mLC (213 ft) 30°C to 200°C (390°F) 16 bar (232 psi) 17 kW at 2900 rpm (28 HP at 3500 rpm)
KMV 70m³/h (300 USgqm) 65 mLC (213 ft) 30°C to 200°C (390°F) 16 bar (232 psi) 17 kW at 2900 rpm (28 HP at 3500 rpm)
AMB 70m³/h (300 USgqm) 65 mLC (213 ft) 30°C to 200°C (390°F) 16 bar (232 psi) 17 kW at 2900 rpm (28 HP at 3500 rpm)
Magnetic driven KM-pumps are designed to improve plant and personnel safety. Especially when handling toxic, explosive or other dangerous liquids which react on contact with the atmosphere. The KM-pumps operate maintenance-free and their containment shells replace double acting mechanical seals, along with external fluid reservoirs and the necessary control equipment.
Maximum capacity appr. 70 m3/h (300 US-gpm), differential head 65 mLC (213 ft). Temperature range -30°C to 200°C (390°F), working pressure 16 bar (232 psi)
