Cảm biến áp suất UNIVERSAL CA201
  • Mã SP: BCBLB-CA201
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 6403

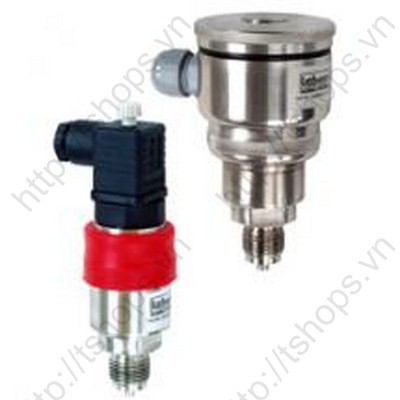

  • The analog pressure transmitter UNIVERSAL is suited for measuring the relative and absolute pressure of gases, vapors and liquids.
    The area of application lies in general process measurement technology. There are two different designs of housings available: standard housing with right angle plug or stainless steel field housing for use in tough environments.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Features
  • Measuring ranges 0…160 mbar up to 0…400 bar rel., 0…0.4 bar up to 0…25 bar abs
  • Piezoresistive sensor element
  • Measuring system overload protected
  • Zero point and measuring span can be adjusted externally by means of a potentiometer
  • Internal diaphragm type series CB102.
  • Flush mounted diaphragm type series CE102.
  • Wetted parts of stainless steel, completely welded
  • Stainless steel housing as standard or field housing
  • Degree of protection IP 65, option: IP 67
  • Output signal: 4…20 mA, option: 0…20 mA,
    0…10 V DC
Options
  • Explosion protection for gases
  • Approval German Lloyd
  • Type series
    CB1020;CB1021;CB2020;CB2021
    CE1010;CE1011;CE2010;CE2011
Application area

● Chemical and petrochemical industry
● Process engineering
● Shipping
● General process technology
