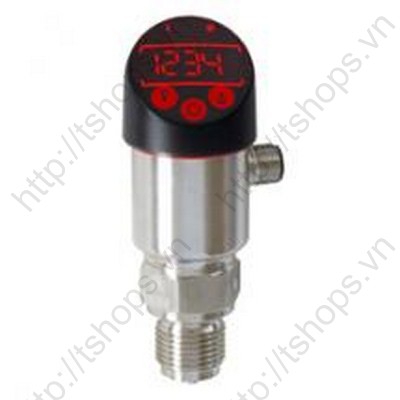

  • The pressure transmitter/pressure switch PASCAL CS is suited for measuring the relative and absolute pressures of gases, vapors and liquids. The multifunctional PASCAL CS displays the measurement; outputs a current signal proportional to the pressure. It has two optional contacts.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Features
  • Multifunctional pressure transmitter/pressure switch
  • Degree of protection IP 65
  • 4 digit LED display, can be mirror-imaged by 180°
  • Indication module can be turned through 300°
  • Measuring ranges 0…100 mbar to 0…40 bar rel., 0…1 bar to 0…6 bar abs, High pressure 0…60 bar to 0…400 bar
  • Output signal 4…20 mA, 2-wire technology
  • Accuracy: ≤ 0.2 %
  • Easy to program locally (as per VDMA standard)
  • Galvanic isolation between transmitter and switching outputs
  • Various process connections
Options
  • Parameterization via PC software for devices with contacts available
  • 2 floating contacts
  • Switching contacts with high switching current (1A)
  • Inspection certificates
    - material certificate per DIN EN 10204-3.1
    - calibration certificate per DIN EN 10204-3.1
  • Electrical connection rotatable by 300°
  • Degree of protection IP 67
Application area

● Chemical and petrochemical industry
● Process engineering
● General process technology
