Specifications
Voltage DC
Accuracy
0.025 %
Range and Resolution
50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V
Voltage AC
0.4 %(true-rms)
Current DC
0.06 %
500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
Current AC
0.61 %(true-rms)
Temperature (excluding probe)
1.0 %
-200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F)
Resistance
0.05 %
500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
Resistance 10 50 Ω (2 wire connection)
0.15 % + 20
Range and resolution
50.000 Ω
Capacitance
1.000 nF,10.00 nF 100.0 nF, 1.000 µF, 10.00 µF, 100.0 µF, 1000 µF, 10.00 mF, 100.00 mF Ω
Frequency
0.005% + 5
99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
Additional functions/features
Multiple on-screen displays
Yes
True-rms AC bandwidth
100 kHz
DBV/dBm
DC mV resolution
1 μV
Megohm range
Up to 500 M
Conductance
50.00nS
Continuity beeper
Battery/Fuse access
Battery / Fuse
Peak
250 μS
Elapse time clock
Time of day clock
Min-Max-Avg
Duty Cycle
0.01 % to 99.99 %
Pulse Width
0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms
Hold
Isolated Optical Interface
Auto/Touch Hold
Reading memory
Log to PC
Interval/Event Logging
Logging Memory
Up to 10,000 readings
Resistance Low Ohm
0.001 Ω to 50.000 Ω 10 mA source
LoZ
Low Pass Filter
Environmental Specifications
Operating Temperature
-20 °C to +55 °C
Storage Temperature
-40 °C to +60 °C
Relative Humidity
0% to 90% (0 °C - 37 °C)
0% to 65% (37 °C - 45 °C),
0 to 45 % (45 °C - 55 °C
Electromagnetic Compatability
EMC EN6 1326-1
Vibration
Random vibration per MIL-PRF-28800f Class 2
Shock
1 meter drop per IEC/EN 61010-1 2nd edition
Safety Specifications
Overvoltage category
CAT III 1000 V / CAT IV 600 V safety rated
Agency Approvals
CSA, UL, TÜV, CE
Mechanical & General Specifications
Maximum voltage between any terminal and earth ground
1000V
Size
(HxWxL 22.2 cm x 10.2 cm x 6 cm (8.75 in x 4.03 in x 2.38 in)
Weight
870.9 g (28 oz)
Battery Life
100 minimum, 200 hours in logging mode
Battery type
6 AA alkaline batteries, NEDA 15A IEC LR6
DCV: 50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V /0.025 %
ACA (True RMS): 50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V /0.4 %
DCA: 500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A /0.06 %
ACA (True RMS):500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A /0.61%
Nhiệt độ: -200.0 °C đến 1350.0 °C (-328.0 °F đến 2462.0 °F) (option probe)
R: 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ /0.05 %
C: 1.000 nF,10.00 nF 100.0 nF, 1.000 µF, 10.00 µF, 100.0 µF, 1000 µF, 10.00 mF, 100.00 mF /1.0 %
F: 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz /0.005%
Băng tần (True-rms) AC : 100 kHz
DBV/dBm: có
Độ dẫn điện : 50.00nS
Kiểm tra liên tục: có
Giá trị đỉnh: 250 μS
Đồng hồ thời gian: có
Min-Max-Avg: có
Chu kỳ: 0.01 % đến 99.99 %
Độ rộng xung: 0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms
Hold : có
Giao tiếp quang: có
Auto/Touch Hold: có
Bộ nhớ: có
Log to PC: có
Interval/Event Logging: có
Bộ nhớ: 10,000 giá trị
LoZ: Yes
Low Pass Filter: Yes
Kích thước: (HxWxL 22.2 cm x 10.2 cm x 6 cm
Trọng lượng: 870.9 g (28 oz)
Pin: 6 pin AA
Phụ kiện: HDSD, 6 pin AA, dây đo TL71, kẹp cá sấu AC72

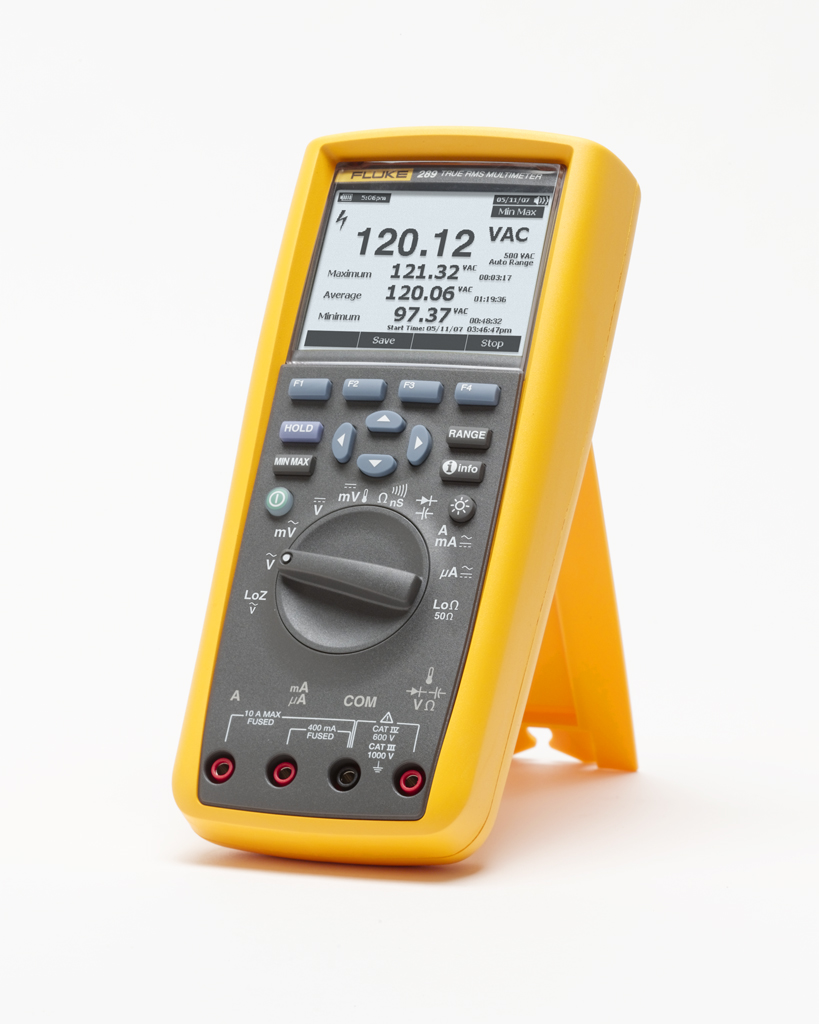

Hãng sản xuất: Fluke
Xuất xứ: Mỹ
Bảo hành: 12 tháng
