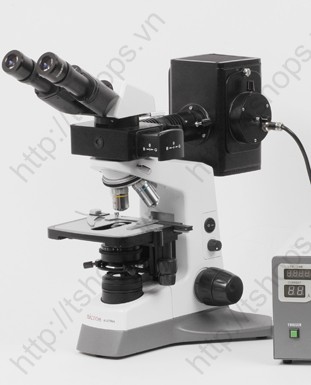

MCX100 body available as > 6V20W Halogen for 220V/50Hz or 110V/60Hz or 5W LED Binocular head, inclination of 30° and arctype tube it allows the greatest possible relief of the neck musculature. Interpupillary distance with diopter compensation from 48 to 75 mm Or Compensation trinocular head for INFINITIVE optics, 30° inclined, 360° rotatable. Interpupillary Distance 55 – 75 mm, with Anti-Fungus treatment. Eyepieces EW10x/20 Widefield, suitable for spectacle wearers Quintuple reverse-angle ball-bearing nosepiece
Low position coaxial coarse and calibrated fine focus control Double layer specimen stage (160 x 140 mm) with exchangeable, ultra-hardened, flexible glass plateand right handed mechanical stage, moving range 72 x 50 mm Abbé condensor n.A. 1.25, with iris diaphragma FLUORESCENCE ATTACHMENT Power Supply 220V 50Hz or alternative 110-115V 60Hz Equipped with HBO burner 100 Watt and focusing/centering srews Light Filter System B (blue light), G (green light) and O (transmitted light) Excitation filter (EX) (B) EX490 (G) EX545 Double direction dichroic mirror DM510, DM580 Cut-off filter (BA) BA530, BA590 Also included in the Set are: 2 pcs Super high pressure spherical mercury lamp HBO 100 Watt 2 pcs Fuse 250V 8A 1 pc Screen for eye protection 1 pc Special oil for fluorescence Option: UV-light filter system for fluorescence with Auxiliary excitation filter EX 450-490 and Cut-Off filter BA530, BA590
