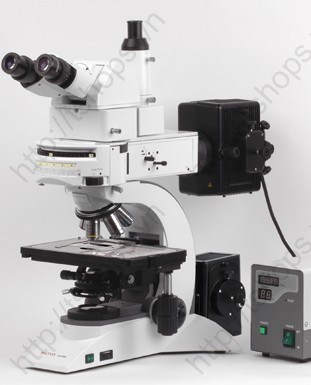

Kính Hiển Vi Lily MCX500

Kính Hiển Vi MCX500 Main body 220V/50Hz or 110V/60Hz
AVAILABLE AS 50W HALOGEN VERSION OR 100W HALOGEN VERSION!

Sextuple reverse-angle ball-bearing nosepiece Coaxial coarse and calibrated fine focus control with graduation reading 1 micron per division. Total focusing range 24 mm. Safety Quickfocus Adjustment.

Double layer specimen stage (243 x 158 mm) with exchangeable, ultra-hardened, flexible glass plateand right handed mechanical stage, moving range 77 x 55 mm. ERGO head with variable inclination from 5° to 35°

Eyepieces High-Eyepoint EWF10x/22 with diopter adjustment and eye shields

Infinity Corrected Objectives available; ICO² PLAN or special Fluorescence ICO² PLAN objectives

ICO² PLAN 4/0.10 W.D. 17,8 mm
ICO² PLAN 10/0.25 W.D. 10 mm
ICO² PLAN 40/0.65, spring loaded W.D. 0,35 mm
ICO² PLAN 100/1.25 oil, spring loaded W.D. 0,13 mm

Fluorescence ICO² PLAN 4/0.13, WD 19.8 mm
Fluorescence ICO² PLAN 10/0.30, WD 12.4 mm
Fluorescence ICO² PLAN 20/0.50, WD 1,5 mm mm
Fluorescence ICO² PLAN 40/0.75, WD 0,35 mm
Fluorescence ICO² PLAN 100/1.3, WD 0,13 mm

Abbé Brightfield Swing-out condenser n.A.0.9/1.25 with Iris diaphragma
Aperture diaphragm with positive guide marking for respective objectives

Real Koehler illumination

FLUORESCENCE ATTACHMENT
Power Supply 220V 50Hz or alternative 110-115V 60Hz

Equipped with a HBO burner 100Watt and focusing/centering screws

Light filter system
B (blue light), G (green light) and O (transmitted light)
Excitation filter blue BP460-490, green BP 510-550
Double direction dichroic mirror DM500, DM570
Cut-off filter BA520, BA590

Also included in the Set are:
2 pcs Super high pressure spherical mercury lamp HBO 100 Watt
2 pcs Fuse 250V 8A
1 pc Screen for eye protection
1 pc Special oil for fluorescence
