  • NOTE: Please contact us for quote on EasyTherm-100 Bearing Heater.

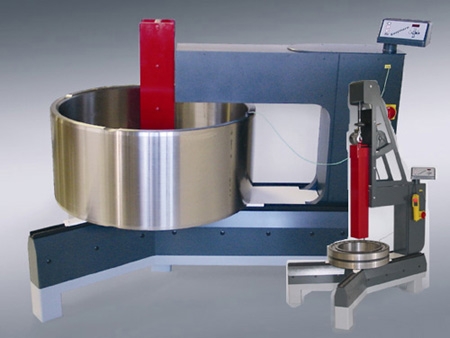

    The Easytherm 100 is robust and a powerful 400 Volt stationary microprocessor controlled induction heater. To be used for the professional mounting of a range of heavy parts including bearings, typically in maintenance shops and production areas for instance paper-mills and steel-mills. When press mounting is not an option the TM heater offers the solution.

    "TURBO-BOOST" In the horizontal position the part will heat up twice as fast.

    Advantage of induction heating:

    Fast and controllable heating process
    Safe heating process:
    - Only workpiece is heated
    - No messing around with dangerous hot oil
    - No risk of (local) over heating
    Suitable for ee or ZZ bearings (no risk of grease leakage)
    Can be used with bearings with polyamide cages
    No deforming of the bore of the workpiece
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Specifications:

Voltage

380-600V
Frequency

50/60Hz
Power

40 kVA
Weight heater

800kG
Dimensions heater lxbxh

1500x700x 1300
Temp. mode

0-240 (400) °C
Time mode

0-99.59 min
Induction yokes

60/80/100/150
Max.diam. work piece

1500mm
Max. width Work piece

500mm
Max.weight Work piece

1000kG
