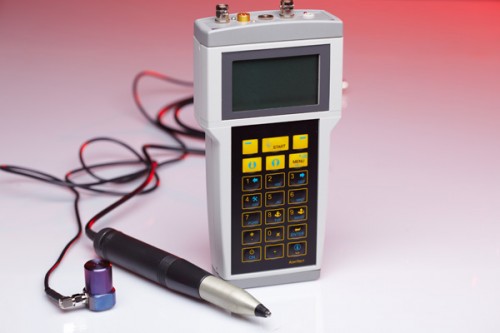

795M Entry to FFT Data Collector and Signal Analyzer (1-Channel)

Có: 0 sản phẩm trong giỏ

795M Entry to FFT Data Collector and Signal Analyzer (1-Channel)
  • Mã SP: 795M
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 5233
  • The 795M is an economical portable single channel multi-function data collector and FFT spectrum analyzer. It is versatile for overall values measurement, bearing condition diagnostic, spectrum diagnosis and in-situ-multi-plane balancing of rotating machinery (up to 8 planes of correction, up to16 point to check vibration).
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Features

• Vibration measurement of Velocity, Acceleration and Displacement
• Trending of characteristics overall values on conspect software
• Shock pulse measurement for bearing condition evaluation
• Frequency spectrum analysis
• Time- domain analysis
• Envelope spectrum analysis for ball and slider bearing
• Display of true RMS and Peak-to-Peak values
• Non-contact infra-red tachometer sensor for rotation frequency
• Phase measurement
• Run-up / Coast-down measurement
• Dynamic multi-plane balancing of up-to 8 plane
• Rechargable battery save to trouble of battery replacement and money.

TECHNICAL SPECIFICATIONS

Instrument
Input Signal Type Charge (piezoelectric accelerometer)
Signal RMS, Peak-to-Peak, 0 to Peak
Measurement Parameters Acceleration, Velocity, Displacement, FFT domain Shock-pulse, phase
Frequency Range 2 Hz to 10 kHz
Sampling rate 33 kHz

Dynamic Frequency Range
Acceleration 2 – 10000 Hz (-3dB) & 0.01 – 500 m/s2
Velocity 2 – 16 Hz (-3dB) & 0.8 - 5000 mm/s
10 – 1000 Hz (-3dB) & 0.1 - 79 mm/s
Displacement 2 – 16 Hz (-3dB) & 0.05 - 50 mm
10 – 100 Hz (-3dB) & 0.003 - 1.2 mm
10 – 1000 Hz (-3dB) & 0.003 - 0.02 mm
Accuracy ±5%

FFT
FFT Spectrum resolution 400, 800, 1600 lines
Windows weighting function Hanning, Blackman-harris & Rectangular
Averaging mode Time domain: Linear, exponential
Frequency domain: Linear, exponential
Trigger mode Free-run, Internal or Ext. on fall or rise pulse trigger & delay trigger
One-third octave 34 bands w/ central frequencies from 4 to 8000 Hz
Phase angle range 0º to 360º
RPM 20 to 20,000 rpm ± 1 RPM
Housing ABS
Environmental Protection IP65 (water spray resistant, shock and dustproof)
Operating temperature -10ºC to 50ºC
Relative humidity up to 80%
Battery & operating life 4.8Volts, 8 hours continuous operating
Automatic shutoff Yes, approx. 15mins
Memory capacity 2 Mbytes
Com interface Serial port

Accelerometer
Type Piezoelectric accelerometer
Sensitivity pCs2/m - 0.1 to 500
Frequency Range 2 Hz to 10 kHz
Resonance frequency 28 kHz
Transverse sensitivity < 5 %

Carrying Case Standard ABS with form inserted
Case dimension Approx. 456 x 355 x 133 mm
Weight incl. all std parts 5.1 Kgs

Standard Delivery:

1. Display Unit
2. Accelerometer
3. Accelerometer cable – 2 meter
4. Accelerometer Pin adaptor
5. Accelerometer Magnet adapter
6. Bearing Condition Probe with cable attached.
7. Tachometer with 5 meters cable attached TI-7
8. Tachometer Magnetic Bracket
9. Charger
10. PC cable USB-RS232 – 1.5 meters
11. USB-RS232 adaptor
12. Liquid Marker
13. Carry Case
14. Operation Manual
15. Conspect software
16. Calibration & Quality Certificates

Specifications subject to change without notice.
