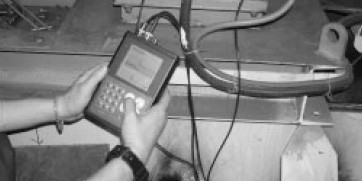

C911 Laser Shaft Alignment with 2 channel Vibration Analyzer and Dynamic Balancing

Standard Features

• Displacement, velocity, acceleration measurements and spectrum analysis
• Frequency and time domain measurements, enveloping detector
• Balancing program – up to 8 planes, up to 14 points
• Laser alignment – advanced horizontal, vertical mechanism alignment
• On site express rolling bearings tester
• Standard file system FAT16, use of standard SD (or mini, micro SD) card provide up to 1GB memory for data storage
• Standard file system provide user defined folders structure and time and date stamped data files
• Firmware - upgradeable by user
• Wide temperature range graphical LCD (Liquid Crystal Display) with 160 x 160 pixels and white LED backlight
• 2100 mAh NiMH battery
• Battery charger
• USB communication interface
• ConSpect Windows® based data base and analysis software

Standard Kit Items

• C911 display unit with NiMH battery
• USB type charging adapter
• USB data transfer cable
• Charge type accelerometer  – 2pcs
• Accelerometer cable 1.8 m length – 2pcs
• Accelerometer magnetic mounting base – 2pcs
• Bearings tester probe
• Non-contact infra red tachometer sensor
• ConSpect Windows® based data base and analysis software on CD
• Instrument Reference Guide
• Software Reference Guide
• Carry bag

Note: Additional accelerometers and accessories may be used to meet measurement requirements

Balancing kit items

• Reflective tape
• Adjustable tachometer stand with magnetic mount

Alignment kit items

• S, M measuring units
• Cables for measuring units 2.5m length – 2pcs
• Universal shaft brackets with chains
• Measuring tape


Note: Instrument kit's contents may vary and should be agreed with sales agent.

Instrument Measurement Capabilities

• Route Enabled
• Spectrum/Waveform
• Demodulation
• Keypad Entry
• Linear or exponential averaging
• Time Synchronous Averaging
• Bump Test
• Balancing program – up to 8 planes, up to 14 points
• Laser alignment – advanced horizontal, vertical mechanism alignment
• On site rolling bearings tester.
