Cần Xiết Lực YCL (TOHNICHI)
  • Mã SP: CLLTNC-YCL
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 7044

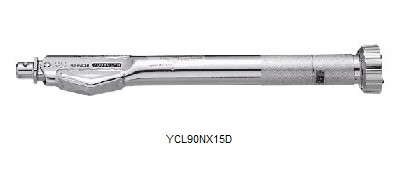

  • Cần Xiết Lực YCL (TOHNICHI)
    - Interchangeable Head Adjustable Style
    - For Critical Assembly Applications
    - Primary Click Followed by Break and Secondary Click
    - Wrench will click at set torque with 5 degree toggle operation, then a 14 degree "free zone" where the torque will not increase, then a 2nd final click alerts user to stop pulling
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Cần Xiết Lực YCL (TOHNICHI)


Select proper model according to unit of measure as following color code :

S.I. =     Metric =     American =
Accuracy ±3%

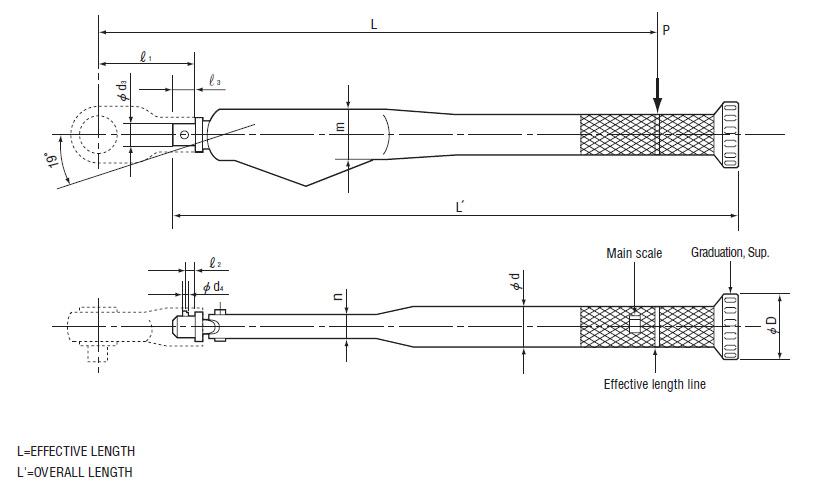

Model Torque Range Hand Force at Max Torque Range Dimensions [mm] Weight approx Interchangeable Head Size
S.I. Metric American Min.-Max. Graduation
S.I. Metric American S.I. Metric American N L L' m n d D kg
YCL12N X 10D 120YCL YCL100I N.m
5-12		 kgf.cm
50-120		 in.lbs
50-100		 N.m
0.1		 kgf.cm
1		 in.lbs
1		 30 200 225 25 12 20 35 0.32 10D
YCL23N X 10D 230YCL YCL200I 10-23 100-230 100-200 0.2 2 2 115
YCL45N X 12D 450YCL YCL400I 20-45 200-450 200-400 0.25 2.5 2.5 173 260 272 27.1 14.2 22 34.5 0.50 12D
YCL70N X 12D 700YCL YCL600I 30-70 300-700 300-600 0.5 5 5 270
YCL90N X 15D 900YCL YCL750I 40-90 400-900 400-750 0.25 2.5 2.5 250 360 366 34.1 17.4 27.2 42 1.0 15D
YCL140N X 15D 1400YCL YCL1000I 60-140 600-1400 600-1000 0.5 5 5 390
YCL180N X 19D 1800YCL YCL100F 80-180 800-1800 ft.lbs
45-100		 ft.lbs
0.5		 330 570 570 37.9 17.9 30 1.70 19D
- - YCL150F - - 80-150 - - 0.5 - - -         -
