Cờ Lê Lực CSF/CF/CFR
  • Mã SP: CLLTNC-CSF
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 8024

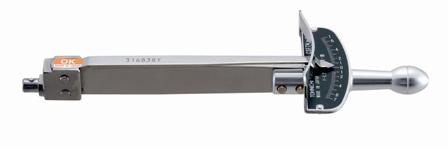

  • Cờ Lê Lực CSF/CF/CFR
    - Scale with Main Indicating Pointer

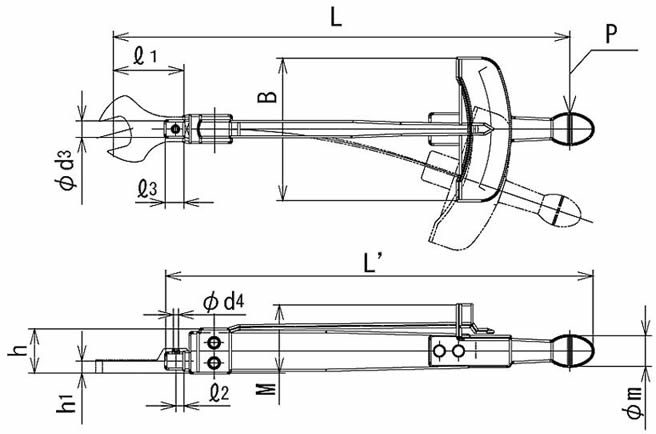

    - Lower Torque Range CSF Models feature ball end handle
    - Mid Range CF Models feature floating pivoting handle
    - Large Capcity CFR Models feature handle designed for winch or mechanical loading device
    - For Measuring and Tightening Applications
    - Interchangeable Head Version of SF/F Series
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Cờ Lê Lực Tohnichi CSF/CF/CFR


Select proper model according to unit of measure as following color code :


S.I. =     Metric =     American =
Accuracy ±3%

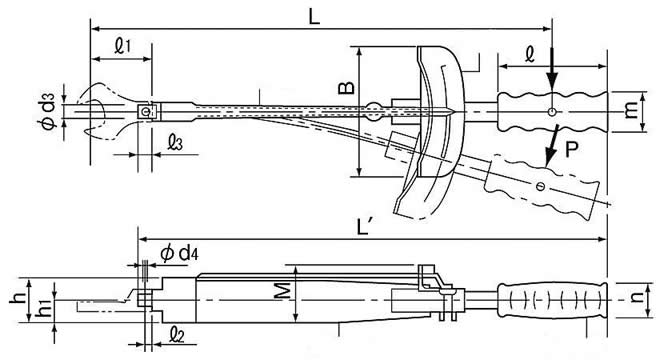

Model Torque Range Max Hand Force Dimensions [mm]  Weight approx.
Tohnich Head Size
Min.-Max. graduation
S.I. Metric American S.I. Metric American S.I. Metric American N L L' M B h h1 m n kg
CSF7NX8D 70CSF 70CSF-A N.m
1-7		 kgf.cm
10-70		 in.lbs
10-60		 N.m
0.2		 kgf.cm
2		 in.lbs
2		 30 235 215 34 74 21.8 6 16 N/A 0.2
8D
CSF14NX8D 140CSF 140CSF-A 2-14 20-140 20-120 0.5 5 5 55 260 240 36 84 25.8 0.25
CF25NX10D 250CF 250CF-A 5-25 50-250 40-220 1 10 10 80 315 320 41 90 31.8 15 25 20 0.4
10D
CF50NX12D 500CF 500CF-A 10-50 100-500 80-420 2 20 20 135 375 380 45 104 35.8 17 33 26 0.6
12D
CF100NX15D 1000CF 1000CF-A 10-100 100-1000 ft.lbs
6-70		 ft.lbs
2		 230 435 430 52 110 42.2 20 1.0
15D
CF150NX19D 1500CF 1500CF-A 20-150 200-1500 15-110 5 kgf.m
0.5		 5 310 490 480 53 115 44.6 21 38 30 1.3
19D
CF230NX22D 2300CF 2300CF-A 30-230 kgf.m
3-23		 20-160 420 555 525 56 120 46.6 22 1.6
22D
CF420NX22D 4200CF 4200CF-A 70-420 7-42 30-300 10 1 570 750 715 60 130 50.8 24 3.1

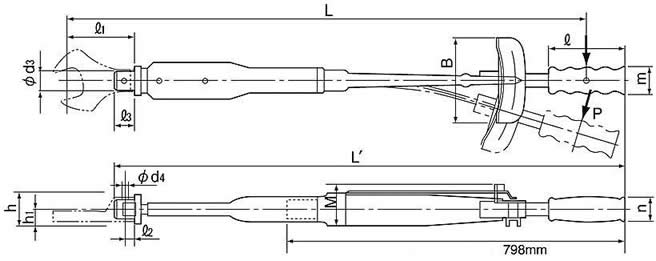

CF850NX32D 8500CF 8500CF-A 100-850 10-85 60-600 20 2 20 670 1310 1260 152 48 38 7.1
32D
CFR2800NX54D
CFR4200NX62D
