Cờ Lê Lực Tohnichi FHDS
  • Mã SP: CLLTNC-FHDS
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 7600
  • Cờ Lê Lực Tohnichi FHDS
    - Transfer torque data by wireless transmission
    + Basic click type torque wrench records actual applied torque and sends data wireless to receiver box which is connected to PLC and or PC
    - Torque Data Management
    + Control data by registered serial number and work-section to prevent missed-tightening.
    - Suitable for assembling operation
    + Robust click type torque wrench is ideal for quick paced assembly work.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền

Cờ Lê Lực Tohnichi FHDS


Basic Wrench Model Torque Range Max
Hand Force		 Effective
Length		 Overall
Length		 Weight
Min.-Max. N mm mm kg
S.I. Metric American
CSPFHDS25N3X10D N.m
5~25		 kgf.cm
50-250

in.lbs
50-200

 125 200 213

0.335
CSPFHDS50N3X12D 10~50 100-500 100-400 239 209 215 0.435
CSPFHDS100N3X15D 20~100 200-1000 100-750 343 292 291 0.585
CSPFHDS140N3X15D 30~140 300-1400 300-1200 400 350 349 0.685
CSPFHDS200N3X19D 40~200 400-2000 300-1600 449 445 424 1.135
CSPFHDS280N3X22D 40~280 kgf.m
4-28		 300-3000 424 660 622 1.535
CSPFHDS420N3X22D 60~420 6-42 600-3600 442 950 918 2.835





Type of system Data transfer torque management system
Purpose Establish bolt-tightening traceability
(with torque judgement (low/over) functions)
Application Ideal for torque verification assembly processes
Frequency 2.402GHz - 2.479GHz (1MHz interval)
Communication method Frequency hopping spread spectrum
Communication direction Duplex (transmitter ⇔ receiver)
Duplex (receiver ⇔ PLC, Tohnichi software)
No. of channels 256 group (incl. 5ch in each group)
Change of channels & ID Transmitter: Variable via wireless (from software/setting box)
Receiver: Variable via wireless (from software/setting box)
No. of ID 3 digits (numeric): 1,000
7 digits (alpha-numeric): over 78 billions
Antenna Built-in (Chip antenna)
Case material Aluminum
Battery DC1.5V nickel hydride battery, 2pcs
Battery life Over 18,000 shots
Communication distance Approx. 20m
Radio law approval TELEC (Japan), FCC (USA), IC (Canada), CE (EU), SRRC (China), SIRIM (Malaysia), DGPT (Indonesia), NTC (Thailand), WPC (India), R&TTE (Europe)
Option Setting box (SB-FH256)


Cờ Lê Lực Tohnichi FHDS

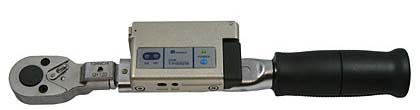

Wireless Data Transfer Torque Wrench and Receiver



  • Transfer torque data by wireless transmission  Basic click type torque wrench records actual applied torque and sends data wireless to receiver box which is connected to PLC and or PC
  • Torque Data Management  Control data by registered serial number and work-section to prevent missed-tightening.
  • Suitable for assembling operation  Robust click type torque wrench is ideal for quick paced assembly work.
  • OK-NG judgment conveniently located on wrench transmitter module  Bi-directional communication allows the user to check OK_NG judgment on the torque wrench.
  • Easy transmitter/receiver set up  Wirelessly setup communication between wrench and the receiver through optional accessory Model SB-FH256, Setting Box.
  • Use of the universal 2.4GHz frequency band (ISM band)  The FHD(S) model meets various standards such as FCC in North America, IC in Canada, R&TTE in EC and TELEC in Japan
