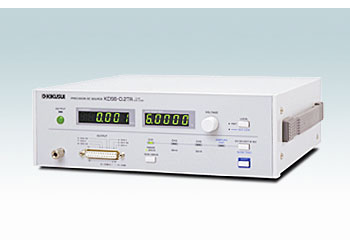

Nguồn dòng áp DC KDS6-0.2TR
  • Mã SP: KDS6-0.2TR
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 2772
  • KDS6-0.2TR is designed for use on production and inspection lines for high-frequency components capable of low supply current and low voltage operation that have become dominantly popular in recent years, as well as for a variety of electronic devices such as ICs, LSIs, and sensors.
    This product is a low-noise, highly stable DC voltage power supply with 3-channel output.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
KDS6-0.2TR is designed for use on production and inspection lines for high-frequency components capable of low supply current and low voltage operation that have become dominantly popular in recent years, as well as for a variety of electronic devices such as ICs, LSIs, and sensors.
This product is a low-noise, highly stable DC voltage power supply with 3-channel output.
KDS6-0.2TR is designed for use on production and inspection lines for high-frequency components capable of low supply current and low voltage operation that have become dominantly popular in recent years, as well as for a variety of electronic devices such as ICs, LSIs, and sensors.
This product is a low-noise, highly stable DC voltage power supply with 3-channel output.
  • 3-channel voltage standard
    CH1: 0 to +6 V/200 mA
    CH2: 0 to +6 V/30 mA
    CH3: 0 to +6 V/30 mA (COM of 3-channel in common)
  • Remote sensing function that compensates for voltage drops at the output terminal
  • Best suited to operation tests for VCO and many other types of sensors
  • Voltage setting resolution of 100 µV (allows a different voltage to be set independently for each channel)
  • Current reading resolution of 0.1 µA* (in standard mode)
    * 1 µA resolution for the 200 mA
  • Ripple noise level lower than 100 µVrms, thus supporting measurements of high-sensitivity devices
  • High-resolution meter with an easy-to-view, 6-digit current display (no external ammeter needed)
  • Supports RS-232C and GPIB as standard interfaces
  • High-speed operation
    Current value refresh interval: 60 ms (in high-speed mode)
    Setting/readout speed: 5 ms (reference value for GPIB)
  • Comes with a D-Sub 25 pin connector allowing for noise resistance
