Nguồn dòng áp DC PWR - New
  • Mã SP: PWR - NEW
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 2595

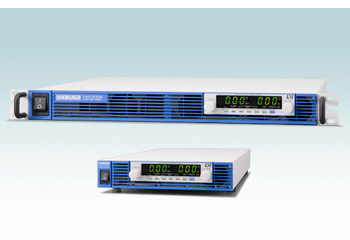

  • The PWX series is a CVCC programmable regulated DC power supply designed to optimize for a rack-mounted power supply. To increase its mounting efficiency, it has a 19-inch rack width with a thin shape and intakes and outtakes for cooling on only the front and back surfaces so that it can be mounted flush top and bottom. The series is equipped standard with USB, RS-232C, and LAN interfaces, which are essential for system upgrades. The series also has a virtual multi-channel bus (VMCB) function that allows it to be used efficiently for remote control and monitoring with 1-to-N and as well as with N-to-M in large-scale networks. In particular, the LAN interface is LXI compliant*, enabling you to control and monitor the power supply easily from a browser on a PC, smartphone, or tablet. You can also manage the power supply in a different building.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
The PWX series is a CVCC programmable regulated DC power supply designed to optimize for a rack-mounted power supply. To increase its mounting efficiency, it has a 19-inch rack width with a thin shape and intakes and outtakes for cooling on only the front and back surfaces so that it can be mounted flush top and bottom. The series is equipped standard with USB, RS-232C, and LAN interfaces, which are essential for system upgrades. The series also has a virtual multi-channel bus (VMCB) function that allows it to be used efficiently for remote control and monitoring with 1-to-N and as well as with N-to-M in large-scale networks. In particular, the LAN interface is LXI compliant*, enabling you to control and monitor the power supply easily from a browser on a PC, smartphone, or tablet. You can also manage the power supply in a different building.
The PWX series is a CVCC programmable regulated DC power supply designed to optimize for a rack-mounted power supply. To increase its mounting efficiency, it has a 19-inch rack width with a thin shape and intakes and outtakes for cooling on only the front and back surfaces so that it can be mounted flush top and bottom. The series is equipped standard with USB, RS-232C, and LAN interfaces, which are essential for system upgrades. The series also has a virtual multi-channel bus (VMCB) function that allows it to be used efficiently for remote control and monitoring with 1-to-N and as well as with N-to-M in large-scale networks. In particular, the LAN interface is LXI compliant*, enabling you to control and monitor the power supply easily from a browser on a PC, smartphone, or tablet. You can also manage the power supply in a different building.
  • Rated output power: 750 W/1500 W
  • Rated output voltage: 30 V/80 V/230 V/650 V
  • A wide range of voltage and current settings can be combined within its output power rating (3 times)
  • PFC circuit of 0.99 (with 100 V) or 0.97 (with 200 V) at full load *TYP value
  • Supporting universal input voltage (85 V to 265 V)
  • LAN (LXI compliant) /USB/RS-232C as standard interface
  • A virtual multi-channel bus (VMCB) function makes multi-channel operation more efficient
  • Emulation setting, Command language setting function
  • A thin and lightweight design with a 1U height for increased rack-mounting efficiency
  • Expandable output capacity by parallel operation
  • Expandable output voltage by series operation (up to 2 units by the same model and excluding 650V models)
  • External analog control function (Output control based on voltage and resistance; ON/OFF based on contact signals)
  • Analog monitor output (output voltage, output current, and operating mode can be monitored)
  • Various protection functions: overvoltage protection, overcurrent protection, and overheat protection
  • Memory function (3 combinations of settings for voltage, current, OVP, OCP, and UVL)
  • Remote sensing function
  • Bleeder circuit ON/OFF setting (to preve
