Nguồn dòng áp DC PMP
  • Mã SP: PMP
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 2573

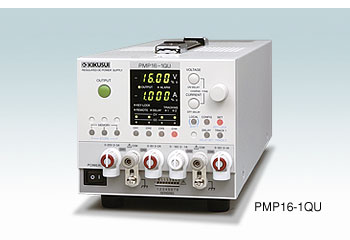

  • The small-size PMP Series is a DC power supply that supports simple functions and provides constant multi-output voltage (CV) and current (CC). The past multi-output power supply can provide only two types of concurrently variable output. The PMP Series, however, implements "Multi-channel Tracking" that allows all types of output to be varied concurrently. It also supports a "Delay Function" that can change output on/off timing, and a "Memory Function" that can store output settings
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
The small-size PMP Series is a DC power supply that supports simple functions and provides constant multi-output voltage (CV) and current (CC). The past multi-output power supply can provide only two types of concurrently variable output. The PMP Series, however, implements "Multi-channel Tracking" that allows all types of output to be varied concurrently. It also supports a "Delay Function" that can change output on/off timing, and a "Memory Function" that can store output settings
The small-size PMP Series is a DC power supply that supports simple functions and provides constant multi-output voltage (CV) and current (CC). The past multi-output power supply can provide only two types of concurrently variable output. The PMP Series, however, implements "Multi-channel Tracking" that allows all types of output to be varied concurrently. It also supports a "Delay Function" that can change output on/off timing, and a "Memory Function" that can store output settings
  • All the types of output have positive polarity*, and the output capacity (current rating) is enhanced.
  • The supported multi-channel tracking function allows all output to be varied concurrently in the same ratio or width (absolute value).
  • The available delay function has the ability to change timing at which to turn on or off the output.
  • The supported memory function has the capability to store output settings. (This product has three memories.)
  • Voltage and current can be displayed under high resolution of four digits.
  • Two common systems are available.(The three-output model supports CH1 and CH2/3, while the four-output model supports CH1/2 and CH3/4.)
  • A remote sensing function is supported for all output.
  • Control via an external contact (Memories 1, 2 and 3, as well as output on/off)
  • The communications interface (GPIB, RS232C or USB) is available as factory option
