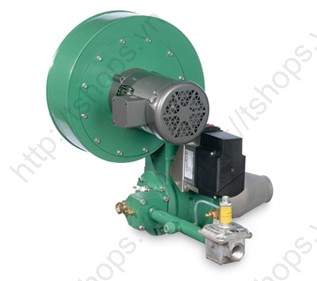

RatioAir Burners
  • Mã SP: LAAEC-115
  • Giá NY: Liên hệ
  • Giá bán: Liên hệ
  • Tình trạng:
  • Khuyến mãi:
  • Lượt xem: 7076
  • RatioAir is a premium air heating burner ideally suited for applications that require:

    A velocity burner with integral packaged blower.
    High excess air and ratio control.
    Use of unusual fuels (e.g. low Btu fuels).
    High chamber temperatures (up to 2500˚ F - 1370˚ C).
    Confined firing chambers.

    RatioAir burners can deliver flame speeds of up to 500 feet per second to deliver improved temperature uniformity, product quality and system efficiency.
  • Tags: Bàn Map
Đơn vị tiền tệ
  • Số lượng:
  • Thành tiền
Current Version: 2.3
Type:  Nozzle Mixing
Number of Sizes:  9/11
Capacity Range:   150,000 to 20,000,000 (Btu/hr)
44 to 5860 (kW)
Turndown:  30:1
Max. Process Temperature:  1900°F, 1038°C (TA) /2800°F, 1538°C (RA)
Fuels:

Natural Gas, Propane, Butane

Landfill Gas, Low BTU Gas
Typical Applications:  Dry-off and curing ovens
Incinerators
Indirect air heating
Textile drying
Food processing/baking
Annealing
Aluminum homogenizing
Key Attributes:  All the features of the RatioMatic, plus a wide range of low calorific value fuels.
  • RatioAir burners are easy to install, operate and maintain.
  • Integral packaged blower.
  • High excess air and ratio control.
  • High chamber temperatures.
  • Can be disassembled from the rear without entering the firing chamber.
  • Quick change spark and flame rods; optional quick-change air filter.
  • Standard nozzles burn natural gas, propane, butane and unusual fuels.
  • Right or left hand piping. NPT or BSP inlet pipe threads.
